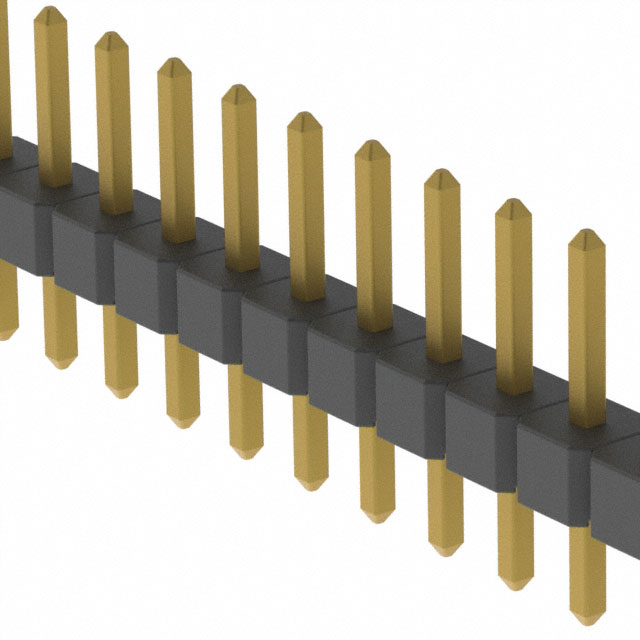

M22-2511105

Description：CONN HEADER VERT 11POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:f1a958abe136 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2511105 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 11POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2511105

Description：CONN HEADER VERT 11POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：11
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.091" (2.30mm)
Overall Contact Length：0.287" (7.30mm)
Insulation Height：0.059" (1.50mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2511105

M22-2511105

Headers, Male Pins Overview

The M22-2511105 is a pin header connector from the Harwin M22 series, designed for board-to-board or cable applications. It features a vertical through-hole mounting style with a 2-row configuration and 11 positions. The connector utilizes a 2.00mm (0.079 inch) pitch for mating contacts. The housing is constructed from black polyamide (PA6T) nylon, rated UL94 V-0 for flammability. Contacts are made of phosphor bronze with gold plating on the mating interface to ensure reliable conductivity. The unit supports a rated current of 1A per contact and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

Vertical through-hole design for secure PCB integration
Gold-plated phosphor bronze contacts for corrosion resistance
UL94 V-0 rated polyamide insulation for thermal stability

Headers, Male Pins Applications

Board-to-board interconnects in industrial equipment
Cable-to-board connections in consumer electronics
Signal transmission in automotive control modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact length, plating thickness, and packaging details. Ensure compatibility with mating socket connectors regarding pitch and row alignment. Check RoHS compliance status and moisture sensitivity level requirements for your assembly process before procurement.

Headers, Male Pins Selection Notes

Select this component when a vertical, two-row header with a 2.00mm pitch is required for high-reliability signal paths. Consider the 1A current rating and 105°C operating limit for thermal management. Verify that the 11-position count matches the circuit design and that the through-hole footprint aligns with the PCB layout constraints.

Headers, Male Pins Part Context

This part belongs to the Harwin M22 series, known for its compact form factor and robust mechanical locking. The series offers various configurations including right-angle and straight headers with different contact lengths. The M22-2511105 specifically addresses needs for vertical mounting with standard contact engagement depth.
