M22-2520305

Headers, Male Pins Overview

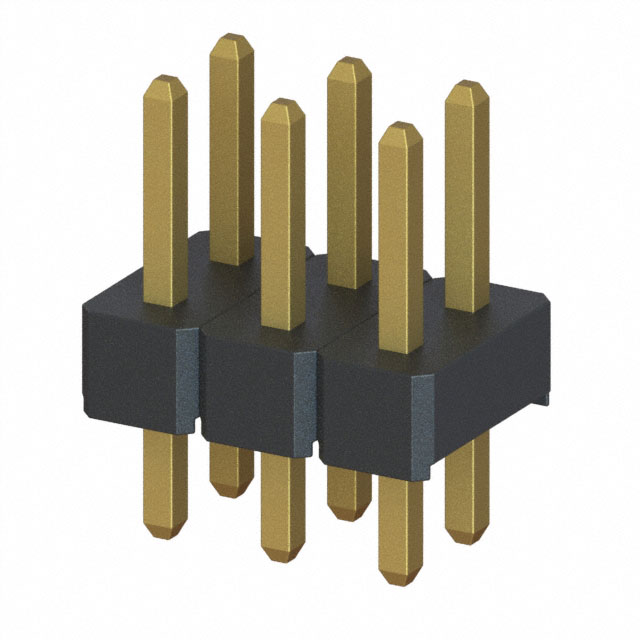

The M22-2520305 is a Harwin M22 series pin header connector designed for board-to-board applications. It features a 2-row configuration with 6 contacts and a 2 mm pitch. The component utilizes through-hole termination with gold-plated phosphor bronze contacts housed in a black nylon insulator rated UL94 V-0. It supports a current rating of 1A per contact and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Dual-row design with jackscrew fixing mechanism for secure connection
• High-temperature resistant housing material ensuring stability under thermal stress
• Gold-plated phosphor bronze contacts providing reliable conductivity

Headers, Male Pins Applications

• Board-to-board interconnections requiring high reliability
• Electronic assemblies operating in elevated temperature environments
• Compact circuit designs utilizing dual-row pin headers

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Harwin documentation to confirm mechanical variations such as latching type or row configuration. Ensure compatibility with mating socket components regarding pitch and contact geometry. Cross-reference datasheets for precise dimensional tolerances before integration into final assembly designs.

Headers, Male Pins Selection Notes

Select this component when a compact, double-row solution with robust mechanical retention is required. The jackscrew fixing option offers superior vibration resistance compared to standard latching variants. Consider the 2 mm pitch and 1A current rating to ensure alignment with system electrical and spatial constraints.

Headers, Male Pins Part Context

This part belongs to the Harwin M22 family, which provides versatile interconnect solutions for demanding industrial and commercial applications. The series distinguishes itself by offering both single-row latching and double-row jackscrew options, allowing engineers to choose the appropriate mechanical fixation method based on environmental requirements.

Headers, Male Pins Replacement Considerations

Direct substitutes are not explicitly confirmed in public data. Evaluate alternative Harwin M22 variants with matching 2 mm pitch and 6-contact count. Verify that any replacement maintains the same row configuration and fixing mechanism to ensure physical and electrical compatibility.
