M22-2520405

Headers, Male Pins Overview

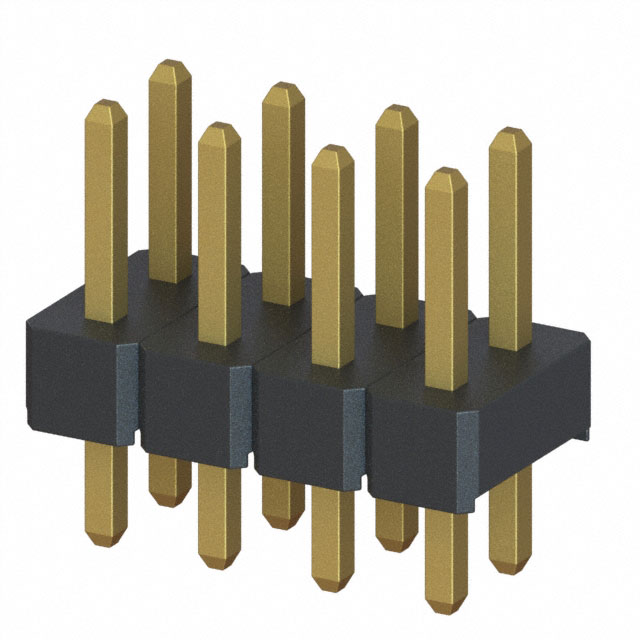

The M22-2520405 is a Harwin Inc. board-to-board connector header from the M22 series, designed for vertical through-hole mounting. It features an 8-position configuration with a 2.00mm (0.079 inch) pitch and dual rows. The component utilizes male square pins with gold plating on phosphor bronze contacts, housed in black polyamide insulation rated UL94 V-0. Rated at 1A per contact, it operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Vertical through-hole pin header design for reliable board-to-board interconnection
• Gold-plated phosphor bronze contacts ensure stable signal transmission
• UL94 V-0 rated black polyamide housing provides thermal stability

Headers, Male Pins Applications

• High-density electronic module assembly
• Industrial control system interconnects
• Telecommunications equipment backplanes

Headers, Male Pins Procurement Notes

Verify the specific suffix '05' confirms gold plating on phosphor bronze contacts as documented. Ensure the vertical orientation matches PCB layout requirements. Confirm that the 8-position count aligns with circuit design specifications before procurement.

Headers, Male Pins Selection Notes

Select this model for applications requiring robust vertical connections with high conductivity. The 2.00mm pitch suits moderate density layouts. Verify compatibility with mating socket connectors in the same M22 series family for proper engagement.

Headers, Male Pins Part Context

Part of the M22 series, known for versatile board-to-board solutions. This specific variant offers a compact 8-pin footprint suitable for space-constrained designs while maintaining industrial-grade performance standards.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other M22 series headers with identical 2.00mm pitch and 8-position counts. Verify matching contact material and plating specifications to ensure electrical continuity.
