M22-2530305

$0.24

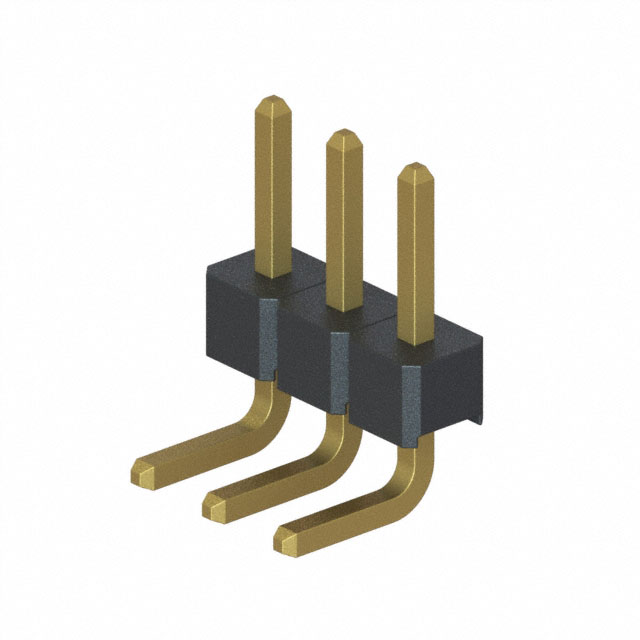

Description：CONN HEADER R/A 3POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:8e81c403605b Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2530305 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 3POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2530305

Description：CONN HEADER R/A 3POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：3
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.094" (2.40mm)
Overall Contact Length：-
Insulation Height：0.079" (2.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2530305

M22-2530305

Headers, Male Pins Overview

The M22-2530305 is a 3-position, single-row female housing from the Harwin M22 series. It features a 2mm (0.079 inch) pitch and is designed for cable installation in a straight orientation. The connector utilizes nylon insulation material and is intended for mating with male pins to establish electrical connections in board-to-wire applications.

Headers, Male Pins Feature Summary

Single-row female housing configuration
2mm pitch spacing for compact layout
Nylon insulation for durability
Straight cable mounting design

Headers, Male Pins Applications

Board-to-wire interconnects
Cable assembly integration
Electronic device wiring

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm current product status and availability. Ensure compatibility with corresponding M22 series male contacts and mating housings. Check for any regional distribution restrictions or obsolescence notices prior to procurement planning.

Headers, Male Pins Selection Notes

Select this component for applications requiring a 3-position female connection with a 2mm pitch. Confirm that the straight cable mounting style aligns with the mechanical constraints of the assembly. Verify that the nylon housing material meets the environmental requirements of the target application.

Headers, Male Pins Part Context

This component belongs to the Harwin M22 series, which offers a range of connectors with 2mm pitch. The series includes various housing types and contact options for different mounting styles and position counts, providing flexibility for diverse electronic interconnection needs.
