M22-2530446

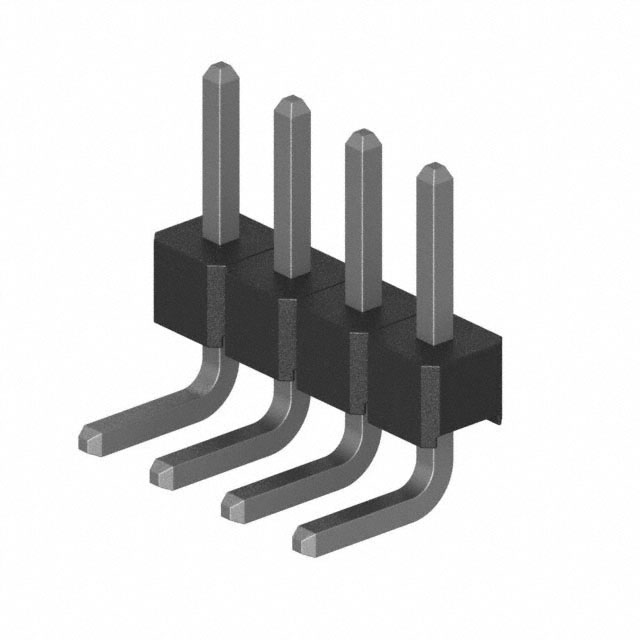

Description：CONN HEADER R/A 4POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:bf28fe39ff34 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2530446 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 4POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2530446

Description：CONN HEADER R/A 4POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：4
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.094" (2.40mm)
Overall Contact Length：-
Insulation Height：0.079" (2.00mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2530446

M22-2530446

Headers, Male Pins Overview

The M22-2530446 is a double-row female connector housing from the Harwin M22 series, designed for IDC cable connections. It features a 2.00 mm (0.079 inch) pitch and supports configurations ranging from 12 to 80 positions. The housing utilizes a push-pull latch mechanism to ensure secure mating and quick connection. Constructed with nylon insulation, it is rated for operation within a temperature range of -40°C to 105°C and meets UL94 V-0 flammability standards. This component is intended for board-to-cable applications.

Headers, Male Pins Feature Summary

IDC cable termination design for rapid assembly
Push-pull latch system for secure engagement
Double-row configuration supporting high pin counts

Headers, Male Pins Applications

Board-to-cable interconnects
High-density signal routing
Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific position count required, as the M22-2530446 designation covers a range of sizes. Confirm that the mating harness uses compatible IDC contacts. Check current availability status, as this part may be subject to obsolescence or supply constraints. Ensure the selected variant matches the required cable gauge and insulation type for reliable performance.

Headers, Male Pins Selection Notes

Select this housing when a robust latching mechanism is required for cable assemblies. Consider the double-row layout for space-constrained high-pin-count designs. Verify compatibility with existing IDC contact sets. Evaluate thermal requirements against the specified operating temperature range. Ensure the chosen position count aligns with the circuit design needs.

Headers, Male Pins Part Context

This component belongs to the Harwin M22 series of Kontrol connectors, which are known for their reliability in demanding environments. The series offers various termination options, including IDC and wire wrap. The M22-2530446 specifically addresses the need for secure, high-density cable connections with a durable mechanical latch.
