M22-2530605

Headers, Male Pins Overview

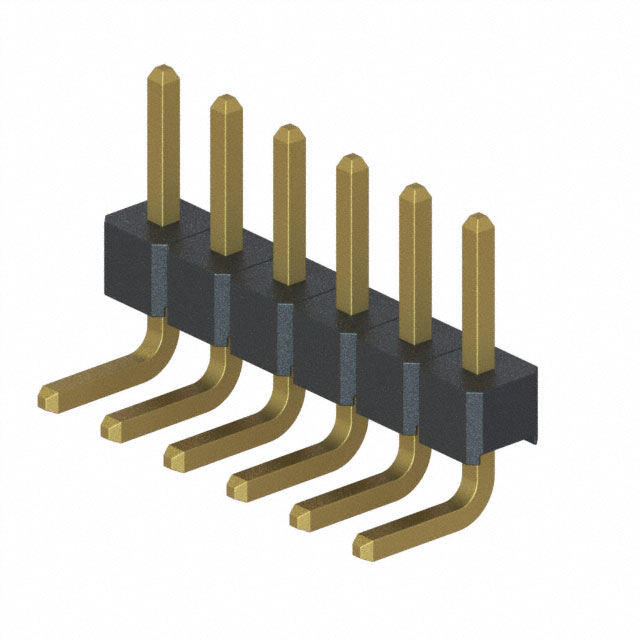

The Harwin M22-2530605 is a single-row, right-angle board-to-board header connector with a 2.00mm (0.079 inch) pitch. It features six positions and utilizes through-hole termination for secure PCB mounting. The component employs male pin contacts designed for mating with female housings or sockets. Constructed with a black polyamide insulation body, it supports a temperature range of -40°C to +105°C and meets UL94 V-0 flammability standards. This vertical plug configuration facilitates compact electronic assembly interconnections.

Headers, Male Pins Feature Summary

• Single-row right-angle design for space-efficient PCB layouts
• Through-hole solder pin termination for robust mechanical stability
• Male contact configuration compatible with standard female counterparts

Headers, Male Pins Applications

• Compact electronic assemblies requiring board-to-board interconnects
• Industrial control systems utilizing modular connector architectures
• Consumer electronics with restricted vertical clearance constraints

Headers, Male Pins Procurement Notes

Verify the specific orientation requirements against your PCB footprint, as this model is strictly a right-angle variant. Confirm that mating components match the 2.00mm pitch and single-row format. Ensure surface finish compatibility if gold plating is specified in your system design. Cross-reference the datasheet for precise dimensional tolerances before finalizing the bill of materials.

Headers, Male Pins Selection Notes

Select this part when a low-profile, right-angle connection is necessary for single-row applications. It is suitable for designs prioritizing mechanical durability through through-hole mounting over surface-mount alternatives. Consider the 2.00mm pitch constraint when routing adjacent traces. Evaluate thermal performance within the -40°C to +105°C operational window to ensure reliability under expected environmental conditions.

Headers, Male Pins Part Context

This component belongs to the Harwin M22 series, a widely adopted family of rectangular connectors known for their versatility in industrial and commercial electronics. The M22 series offers various configurations including headers, housings, and sockets in both single and double-row formats. This specific model represents the single-row right-angle header option within that extensive ecosystem.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 2.00mm pitch single-row right-angle headers from manufacturers such as Samtec or Molex, provided the pin count and terminal style match. Verify that alternative parts maintain identical mechanical dimensions and electrical ratings to ensure seamless integration without redesigning the PCB layout.
