M22-2530846

Headers, Male Pins Overview

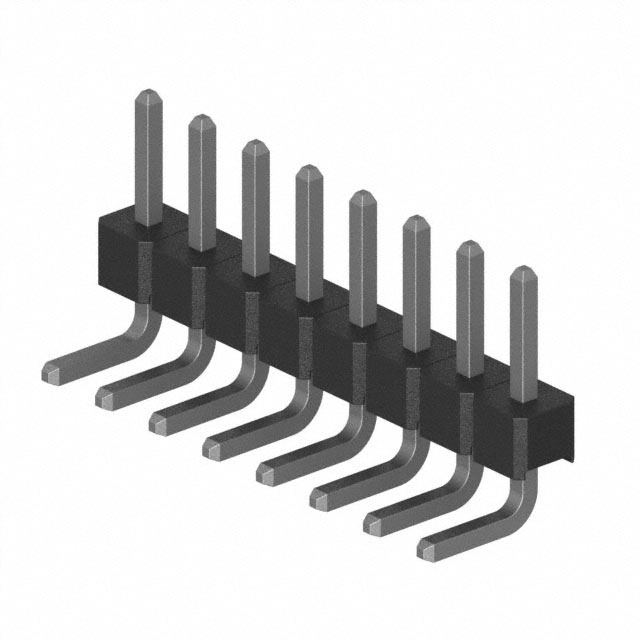

The M22-2530846 is a pin strip header connector manufactured by Harwin Inc., designed for through-board mounting. It features a single row with eight positions and a 2 mm (0.079 inch) pitch. The contacts are tin-plated, providing a reliable connection interface. This component belongs to the M22 series of rectangular connectors and is classified as a male plug type. It utilizes a horizontal orientation for PCB integration, ensuring compatibility with standard assembly processes.

Headers, Male Pins Feature Summary

• Single-row configuration with eight contact positions
• Tin-plated male pin strip design
• Horizontal orientation for board-to-board or cable applications

Headers, Male Pins Applications

• General electronic interconnects
• Board-to-board connections
• Cable-to-board assemblies

Headers, Male Pins Procurement Notes

Verify part availability status carefully, as this specific model may be discontinued or subject to obsolescence notifications. Confirm that the tin plating meets environmental compliance requirements for your application. Ensure the horizontal orientation aligns with your PCB layout constraints before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, horizontal header with eight positions is required. The 2 mm pitch dictates the spacing between adjacent circuits. Tin plating offers cost-effective conductivity but may differ from gold-plated alternatives in corrosion resistance. Verify mechanical fit within the designated housing area.

Headers, Male Pins Part Context

This connector is part of the broader M22 series from Harwin, which includes various configurations for different pitch and row requirements. It serves as a fundamental interconnect solution within the company's portfolio of rectangular connectors, often paired with corresponding socket housings for complete assembly systems.

Headers, Male Pins Replacement Considerations

Check for direct substitutes within the M22 series that match the 8-position count and 2 mm pitch. Consider alternative manufacturers offering similar through-hole headers if supply chain issues arise, ensuring mechanical dimensions remain compatible.
