M22-2530905

Headers, Male Pins Overview

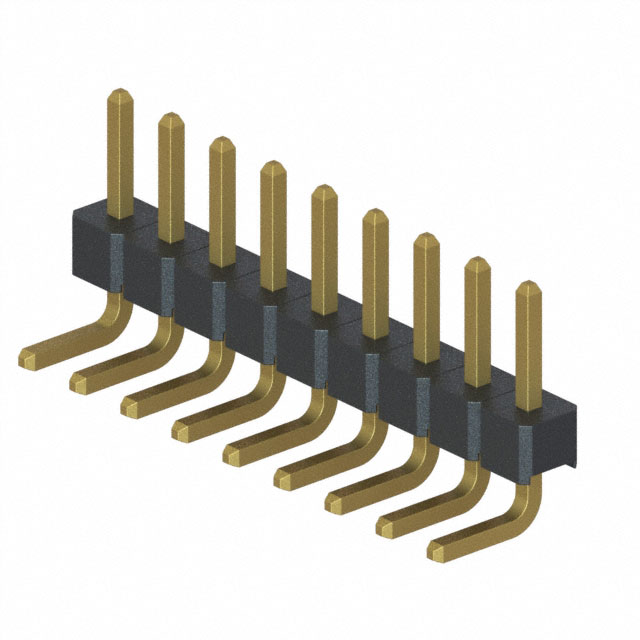

The M22-2530905 is a pin header connector from the Harwin M22 series, designed for board-to-board applications. It features a 2.00mm pitch with 9 positions in a single row. The component utilizes through-hole termination and horizontal mounting orientation. Contact materials are copper alloy with gold plating, ensuring reliable signal transmission. The housing is constructed from black polyamide (PA6T) nylon, rated UL94 V-0 for flammability. It operates within a temperature range of -40°C to 105°C and supports a voltage rating of 500V.

Headers, Male Pins Feature Summary

• Horizontal mounting configuration for space-constrained PCB layouts
• Gold-plated contacts for enhanced corrosion resistance and conductivity
• High-temperature resistant PA6T insulation material

Headers, Male Pins Applications

• Board-to-board interconnections in industrial control systems
• Signal routing in automotive electronic modules
• Integration in telecommunications equipment backplanes

Headers, Male Pins Procurement Notes

Verify part authenticity by checking manufacturer markings against official datasheets. Confirm RoHS compliance status prior to integration. Ensure storage conditions maintain moisture sensitivity levels as specified. Cross-reference ordering suffixes to match exact pin count and tail length requirements for your specific assembly needs.

Headers, Male Pins Selection Notes

Select this model when a low-profile horizontal header is required for rigid PCB stacking. The 2.00mm pitch accommodates standard trace spacing. Verify mating connector compatibility within the M22 series. Consider thermal management capabilities given the PA6T housing and operating temperature limits during high-load scenarios.

Headers, Male Pins Part Context

Part of the M22 series, known for compact form factors and robust mechanical stability. Designed for high-density interconnects where vertical height is limited. Offers consistent performance across various environmental conditions typical of modern electronics manufacturing.

Headers, Male Pins Replacement Considerations

M22-2530905 is currently listed as obsolete or end-of-life in some distributor records. Check for direct replacements like M22-2530906 if available. Evaluate M22-2530905 variants with different tail lengths or contact platings. Consult Harwin for current lifecycle status and recommended alternative part numbers.
