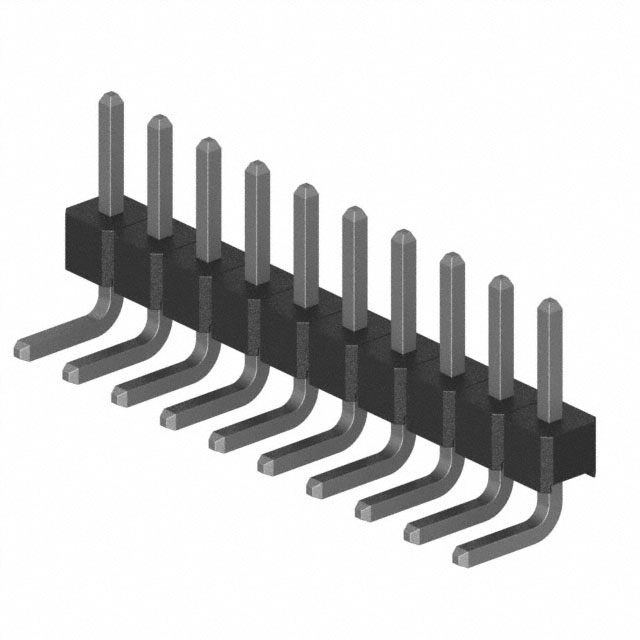

M22-2531046

Description：CONN HEADER R/A 10POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:97110fb6cd48 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2531046 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 10POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2531046

Description：CONN HEADER R/A 10POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：10
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.094" (2.40mm)
Overall Contact Length：-
Insulation Height：0.079" (2.00mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2531046

M22-2531046

Headers, Male Pins Overview

The M22-2531046 is a single-row pin header from the Harwin M22 series, designed for board-to-board interconnections. It features a 2 mm (0.079 in) pitch and contains 10 positions. The connector utilizes horizontal surface-mount termination with tin-plated contacts. Constructed with a black polyamide insulation body rated UL94 V-0, it supports a maximum voltage of 500V and operates within a temperature range of -40°C to +105°C. Each contact is rated for 1A current.

Headers, Male Pins Feature Summary

Horizontal surface-mount design for low-profile PCB integration
Tin-plated phosphor bronze contacts for reliable conductivity
UL94 V-0 rated black polyamide insulation for thermal stability

Headers, Male Pins Applications

Board-to-board signal interconnection
Low-profile electronic module assembly
Industrial control panel wiring

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized Harwin distributors or certified partners. Confirm RoHS compliance status via official datasheets prior to procurement. Ensure storage conditions maintain integrity of tin-plated contacts against oxidation. Validate that the specific ordering suffix matches the required termination style and plating specifications for the target application environment.

Headers, Male Pins Selection Notes

Select this component when a horizontal surface-mount header is required for space-constrained designs. The 2 mm pitch accommodates standard trace spacing while providing robust mechanical retention. Verify that the 1A current rating per contact aligns with the circuit load requirements. Consider the operating temperature range to ensure compatibility with the environmental conditions of the final assembly.

Headers, Male Pins Part Context

This part belongs to the M22 series of rectangular connectors, which are widely used in industrial and commercial electronics. The series offers various configurations including vertical and angled headers, as well as different row counts and pitches. The M22-2531046 specifically addresses the need for compact, horizontally mounted connections within the broader M22 ecosystem.
