M22-2531105

Headers, Male Pins Overview

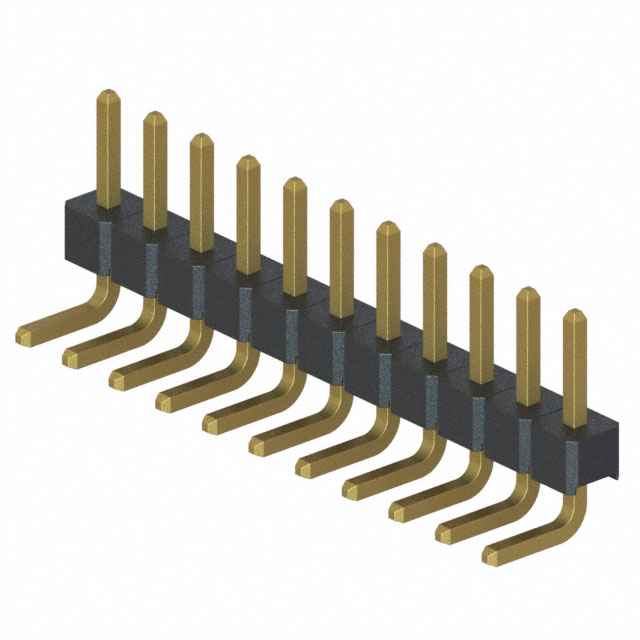

The Harwin M22-253105 is a 11-position, 2.00mm pitch right-angle board-to-board header from the M22 series. It features male pins with tin plating and is designed for horizontal surface mount installation. The connector utilizes a push-pull locking mechanism and operates within a temperature range of -40°C to +105°C. Constructed with phosphor bronze contacts and polyamide insulation rated UL94 V-0, it supports a rated current of 1A per contact at 500V. The unit weight is approximately 293 mg.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact vertical stacking in dense electronic assemblies.
• Push-pull locking system ensures secure mating and reliable connection stability.
• Tin-plated phosphor bronze contacts provide effective corrosion resistance and conductivity.

Headers, Male Pins Applications

• Compact consumer electronics requiring space-efficient interconnects
• Industrial control modules needing robust board-to-board connections
• Automotive infotainment systems with high-density layout requirements

Headers, Male Pins Procurement Notes

Verify the specific suffix code against official Harwin documentation to confirm plating type and orientation. Ensure compatibility with mating sockets in the same M22 series family. Check for RoHS compliance status if required by project specifications. Confirm availability as this part may have limited stock or obsolescence risks compared to newer variants.

Headers, Male Pins Selection Notes

Select this component when a right-angle, surface-mount header is required for 2.00mm pitch applications. Consider the 11-position count and single-row configuration for circuit density needs. Evaluate the tin plating option against environmental conditions and mating cycle requirements. Compare with vertical headers if board height constraints differ significantly.

Headers, Male Pins Part Context

This component belongs to the Harwin M22 series, known for its modular design and high reliability in harsh environments. The series offers various configurations including vertical, right-angle, and cable mount options. The M22-2531105 specifically addresses the need for horizontal interconnection in space-constrained designs while maintaining electrical performance standards.

Headers, Male Pins Replacement Considerations

M22-2531146 is a similar 11-position header but features horizontal orientation and tin plating; verify mechanical fit. M22-2032246 is a 22-position variant with different pin counts. No direct drop-in replacements are confirmed without mechanical re-evaluation.
