M22-2531246

Headers, Male Pins Overview

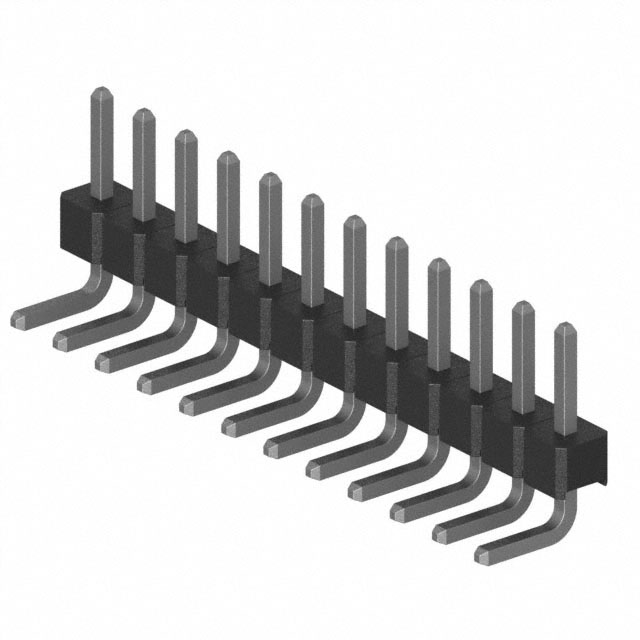

The M22-2531246 is a connector header from the Harwin M22 series, designed for through-hole mounting. It features a right-angle configuration with 12 positions and a 0.079-inch (2.00mm) mating pitch. The component utilizes male pins and employs a push-pull fastening type. Rated at 1A per contact, it supports board-to-board or cable applications. The unit weight is specified as 293 mg.

Headers, Male Pins Feature Summary

• Right-angle through-hole header design
• Push-pull fastening mechanism
• Cuttable pin strip format

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• General electronic assembly

Headers, Male Pins Procurement Notes

Verify the specific orientation and termination style against project requirements before ordering. Confirm that the right-angle form factor aligns with the mechanical layout constraints of the target printed circuit board. Ensure compatibility with mating socket components within the same M22 series family to guarantee proper engagement and electrical continuity.

Headers, Male Pins Selection Notes

Select this model when a low-profile, right-angle connection is required for dense packaging. The cuttable nature allows for customizing the number of contacts to fit specific circuit designs. Consider the 2.00mm pitch spacing to ensure adequate clearance for adjacent components on the assembly.

Headers, Male Pins Part Context

This component belongs to the M22 series by Harwin Inc., which offers various connector solutions. The M22-2531246 specifically addresses needs for angled headers in space-constrained environments. It complements other series products like vertical headers and sockets to provide complete interconnect systems.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
