M22-2531905

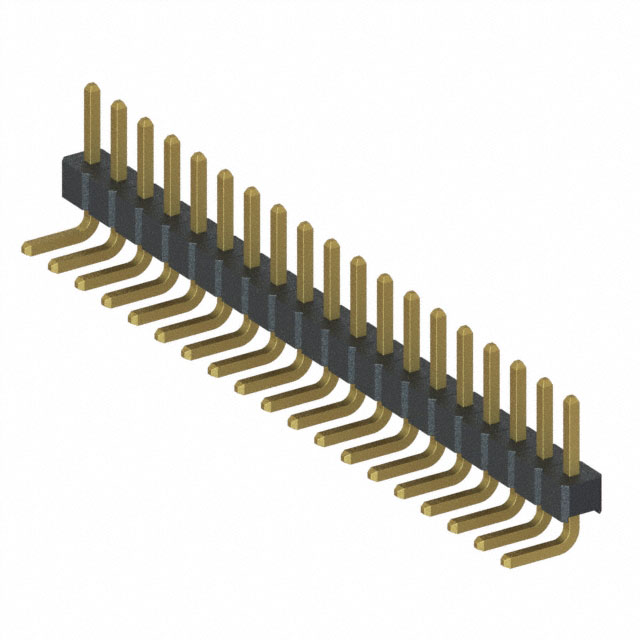

Description：CONN HEADER R/A 19POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:2c5ba16ef0d5 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2531905 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 19POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2531905

Description：CONN HEADER R/A 19POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：19
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.094" (2.40mm)
Overall Contact Length：-
Insulation Height：0.079" (2.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2531905

M22-2531905

Headers, Male Pins Overview

M22-2531905 is a rectangular header connector from the Harwin M22 series, designed for board-to-board applications. It features a 2 mm (0.079 in) pitch and utilizes a single row configuration with 19 positions. The component employs male pin contacts with tin plating to ensure reliable signal transmission. It is specified for surface mount installation in a horizontal orientation, facilitating compact PCB layouts. The connector is constructed using durable materials suitable for standard reflow soldering processes.
