M22-2540446

Headers, Male Pins Overview

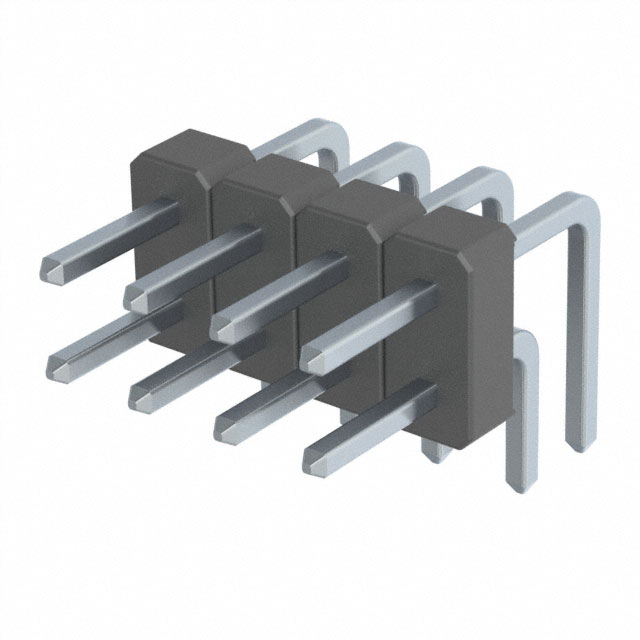

The M22-2540446 is a header and wire housing component manufactured by Harwin. It belongs to the M22 series and features a pin strip type with two rows. The connector provides four positions with a pitch of 2 mm (0.079 in). It utilizes tin-plated contacts and is designed for horizontal mounting. The product lifecycle status is End of Life.

Headers, Male Pins Feature Summary

• Dual-row configuration providing four contact positions
• Tin-plated pin strip design for reliable connectivity
• Horizontal orientation suitable for specific board layouts

Headers, Male Pins Applications

• General electronic interconnections
• Wire-to-board assembly applications
• Industrial control systems

Headers, Male Pins Procurement Notes

This component has reached its end-of-life stage, indicating that it is no longer actively produced or marketed by the manufacturer. Procurement should focus on verifying remaining stock availability through authorized distributors or secondary market suppliers. Engineers planning new designs are advised to consider alternative components within the same series or newer generations to ensure long-term supply chain stability and support.

Headers, Male Pins Selection Notes

Selection requires verification of mechanical fit due to the horizontal mounting style and dual-row arrangement. The 2 mm pitch must align with existing PCB footprint requirements. As an obsolete part, compatibility checks with mating connectors are essential before integration into final assemblies.

Headers, Male Pins Part Context

The M22-2540446 is part of Harwin's M22 series, which focuses on headers and wire housings. This specific model represents a standard pin strip solution offering four positions across two rows. It serves as a connection interface between printed circuit boards and wires, utilizing a robust tin-plated contact system for signal transmission.

Headers, Male Pins Replacement Considerations

As an End of Life product, direct substitutes may be limited. Review Harwin's current M22 series catalog for updated models with similar pin counts and pitch specifications. Cross-reference compatible mating wire housings to ensure mechanical and electrical continuity during replacement.
