M22-2580205

$0.29

Description：CONN HEADER VERT 4POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:3b95742bf246 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2580205 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 4POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2580205

Description：CONN HEADER VERT 4POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：4
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.197" (5.00mm)
Contact Length - Post：0.091" (2.30mm)
Overall Contact Length：0.346" (8.80mm)
Insulation Height：0.059" (1.50mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2580205

M22-2580205

Headers, Male Pins Overview

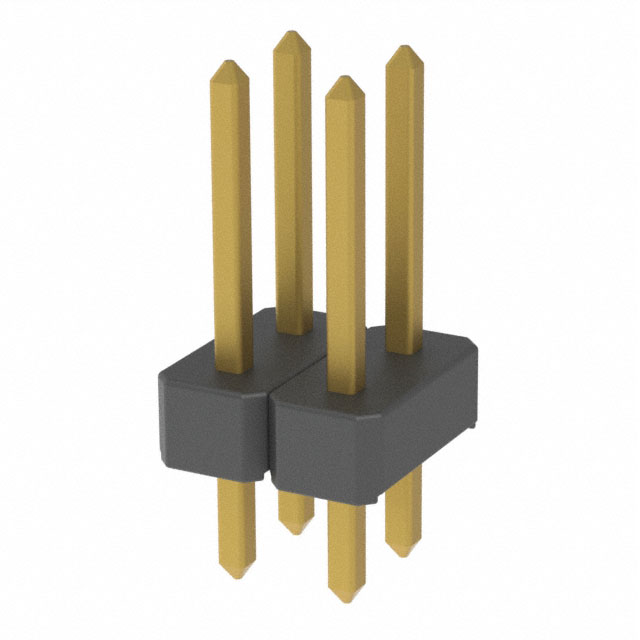

The M22-2580205 is a vertical pin header assembly manufactured by Harwin Inc. under the M22 series. It features a 2.00mm pitch with a 4-position configuration (2+2 DIL). The connector utilizes through-hole termination and includes gold-plated phosphor bronze contacts. Designed for board-to-board or cable applications, it operates within a temperature range of -40°C to 105°C and carries UL94 V-0 flammability ratings.

Headers, Male Pins Feature Summary

Vertical pin header design for standard PCB mounting
Gold-plated phosphor bronze contacts for reliable conductivity
UL94 V-0 rated polyamide insulation material
Through-hole termination method

Headers, Male Pins Applications

Board-to-board interconnections
Cable-to-board connections
General electronic circuit assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm current availability status. Ensure compatibility with mating sockets regarding contact length and pitch. Check for any recent obsolescence notices or lifecycle changes directly from the manufacturer before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this component when a low-profile vertical header with 2.00mm spacing is required. Confirm that the 4-position count meets circuit density needs. Validate that through-hole mounting is suitable for the target PCB manufacturing process and mechanical constraints.

Headers, Male Pins Part Context

This component belongs to the M22 series, which offers various configurations including surface mount and right-angle options. The M22-2580205 specifically addresses vertical through-hole requirements. It is distinct from SMT variants like the M22-2580246 or different pitch connectors in the broader Harwin portfolio.
