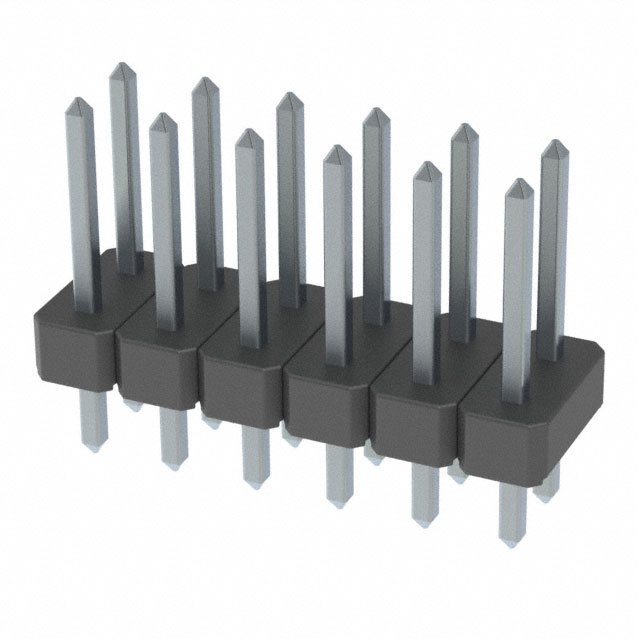

M22-2580646

M22-2580646 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 12POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2580646

• Description：CONN HEADER VERT 12POS 2MM
• Series：M22
• Mfr：Harwin Inc.
• Package：Bulk
• Connector Type：Header, Cuttable
• Contact Type：Male Pin
• Pitch - Mating：0.079" (2.00mm)
• Number of Positions：12
• Number of Rows：2
• Row Spacing - Mating：0.079" (2.00mm)
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Unshrouded
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.197" (5.00mm)
• Contact Length - Post：0.091" (2.30mm)
• Overall Contact Length：0.346" (8.80mm)
• Insulation Height：0.059" (1.50mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：Phosphor Bronze
• Insulation Material：Polyamide (PA6T), Nylon 6T
• Features：-
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：1A per Contact
• Voltage Rating：-
