M22-2582005

Description：CONN HEADER VERT 40POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:ae44141715cd Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2582005 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 40POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2582005

Description：CONN HEADER VERT 40POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：40
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.197" (5.00mm)
Contact Length - Post：0.091" (2.30mm)
Overall Contact Length：0.346" (8.80mm)
Insulation Height：0.059" (1.50mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2582005

M22-2582005

Headers, Male Pins Overview

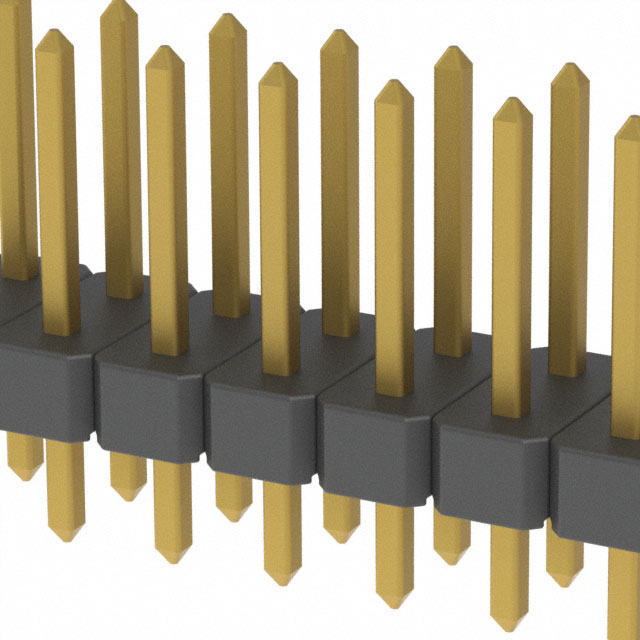

The M22-2582005 is a vertical pin header connector from the Harwin M22 series, designed for board-to-board or cable applications. It features a 2mm pitch with 20 positions arranged in two rows. The connector utilizes phosphor bronze contacts with gold plating and a black polyamide (PA6T) insulator rated UL94 V-0. It supports a current rating of 1A per contact and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

Vertical through-hole mounting configuration for PCB integration
Push-pull locking mechanism for secure mating
Gold-plated square-shaped contacts for reliable conductivity

Headers, Male Pins Applications

Board-to-board interconnections
Cable-to-board assemblies
Compact electronic module integration

Headers, Male Pins Procurement Notes

Verify component lifecycle status as this part may be obsolete. Confirm availability through authorized distributors only. Ensure compatibility with mating sockets regarding pitch and row count. Check for updated replacement part numbers if discontinuation is confirmed. Validate insulation material specifications against environmental requirements.

Headers, Male Pins Selection Notes

Select this connector when a vertical, two-row header with push-pull locking is required. Ensure the mating counterpart matches the 2mm pitch and 20-position layout. Verify that the application environment stays within the specified temperature range. Consider the through-hole termination method for PCB assembly processes.

Headers, Male Pins Part Context

This component belongs to the M22 series by Harwin Inc., known for high-density interconnect solutions. The series offers various configurations including right-angle and vertical headers. The M22-2582005 specifically provides a standard vertical profile suitable for space-constrained designs requiring robust mechanical retention.
