M22-5330905

Headers, Male Pins Overview

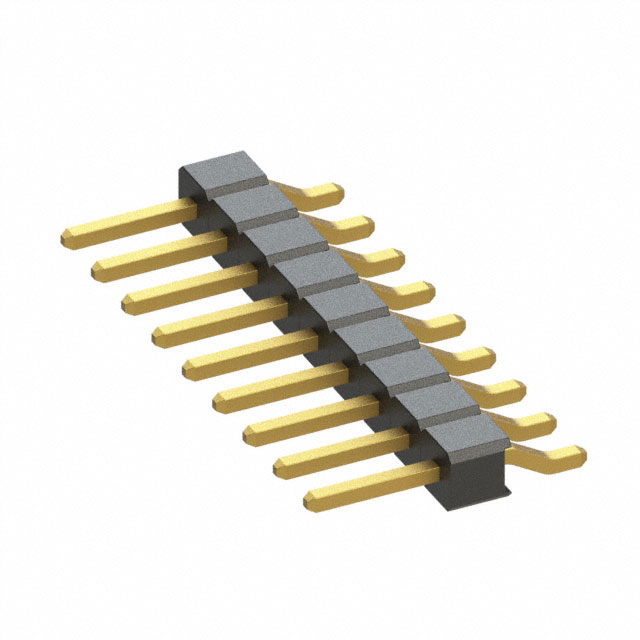

The M22-5330905 is a rectangular connector header manufactured by Harwin Inc. It features a surface mount, right-angle design with 9 positions and a 2.00mm pitch. The connector utilizes gold-plated phosphor bronze contacts housed in black PA6T insulation. Rated for 1A current and 500V voltage, it operates within a temperature range of -40°C to 105°C. The component is RoHS compliant and classified as an unshrouded male pin header.

Headers, Male Pins Feature Summary

• Surface mount right-angle termination for compact PCB integration
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• PA6T insulation material provides high thermal stability and UL94 V-0 flammability rating

Headers, Male Pins Applications

• Board-to-board interconnections in space-constrained electronics
• High-density signal routing on multi-layer PCBs
• Industrial control modules requiring robust surface mount headers

Headers, Male Pins Procurement Notes

Verify the specific contact finish thickness, as sources indicate 'Flash' plating. Confirm moisture sensitivity level (MSL) status prior to assembly planning. Ensure compatibility with mating socket connectors from the same M22 series family. Check for any recent lifecycle updates or obsolescence notices directly from Harwin documentation.

Headers, Male Pins Selection Notes

Select this part for applications necessitating right-angle surface mount headers with a 2.00mm pitch. The 9-position configuration suits moderate density requirements. Verify that the PCB footprint matches the specified SMD dimensions. Consider the 1A current rating when designing power distribution paths within the circuit.

Headers, Male Pins Part Context

This component belongs to the Harwin M22 series, known for its 2.00mm pitch rectangular connectors. The M22 series offers various mounting styles including through-hole and surface mount options. The M22-5330905 specifically addresses the need for right-angle surface mount solutions within this standardized ecosystem.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 9-position, 2.00mm pitch, right-angle surface mount headers from Harwin's M22 series. Verify exact dimensional tolerances and contact plating specifications before substitution.
