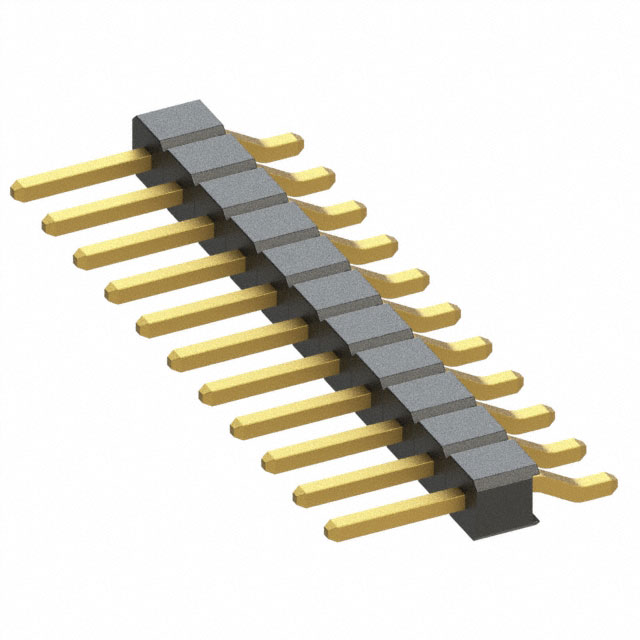

M22-5331105

Description：CONN HEADER SMD R/A 11POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:187cacfdbe79 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-5331105 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD R/A 11POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-5331105

Description：CONN HEADER SMD R/A 11POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：11
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.165" (4.20mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.079" (2.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-5331105

M22-5331105

Headers, Male Pins Overview

The Harwin M22-5331105 is a surface-mount right-angle pin header from the M22 series, designed for board-to-board interconnects. It features an 11-position single-row configuration with a 2mm (0.079 inch) pitch. The connector utilizes gold-plated phosphor bronze contacts housed in black polyamide (PA6T) insulation rated UL94 V-0. Rated at 1A per contact, it operates within a temperature range of -40°C to 105°C and employs a push-pull locking mechanism.

Headers, Male Pins Feature Summary

Surface-mount right-angle design facilitates compact PCB integration
Gold-plated phosphor bronze contacts ensure reliable electrical performance
Push-pull locking system provides secure mechanical retention
UL94 V-0 rated polyamide insulation offers high thermal stability

Headers, Male Pins Applications

Board-to-board interconnects in industrial electronics
High-density circuit board assemblies
Automotive electronic control units
Consumer device internal connections

Headers, Male Pins Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm orientation and pin count accuracy. Ensure compatibility with mating socket specifications regarding current ratings and thermal profiles. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and traceability before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle surface-mount solution is required for space-constrained designs. The 2mm pitch balances density with ease of assembly. Confirm that the mating connector supports the push-pull locking mechanism and matches the 11-position requirement for optimal signal integrity and mechanical fit.

Headers, Male Pins Part Context

Part of the M22 series, which focuses on high-reliability interconnects for demanding environments. The series emphasizes compactness and robust construction suitable for modern electronics manufacturing trends requiring dense, durable connections.
