M22-5431005

Headers, Male Pins Overview

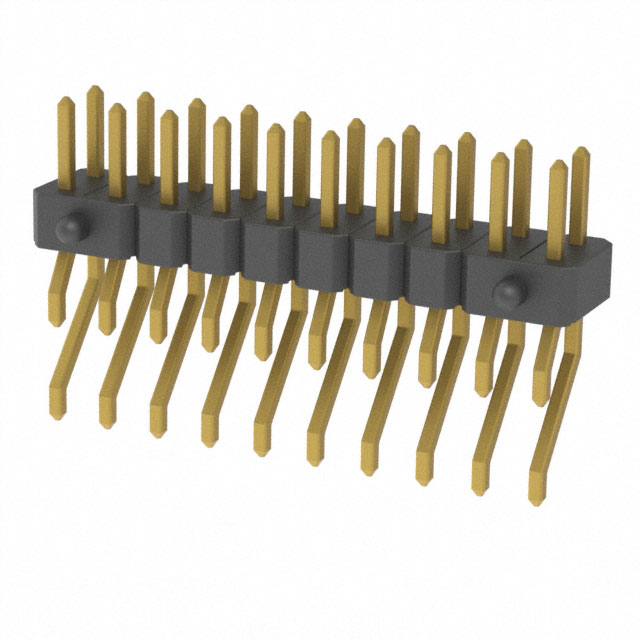

The M22-5431005 is a surface mount, right-angle male pin header manufactured by Harwin Inc. It features a 20-position configuration with a 2.00mm pitch. The connector utilizes a double-row design for high-density applications. It is rated for 1.5A per contact and constructed with UL94 V-0 black insulation. This component is designed for PCB integration in embedded systems.

Headers, Male Pins Feature Summary

• Surface mount right-angle construction for compact PCB layouts
• Double-row male pin configuration for increased density
• UL94 V-0 rated black insulation material

Headers, Male Pins Applications

• Embedded PC connections
• Motherboard interconnects
• Large system board assemblies

Headers, Male Pins Procurement Notes

This part number is obsolete and no longer manufactured by Harwin Inc. Procurement of new units is not possible through official channels. Buyers must verify the availability of substitute components or consider redesigning the circuit to accommodate currently available equivalents from the manufacturer's portfolio.

Headers, Male Pins Selection Notes

Designers should evaluate the MMT-110-01-S-DH as a potential substitute due to similar form factor requirements. Verify that the replacement component meets the specific current rating and pitch constraints of the original design. Ensure compatibility with existing PCB footprints before finalizing any component swap decisions.

Headers, Male Pins Part Context

The M22 series represents Harwin's standard 2.00mm pitch headers established for use in embedded PCs and motherboards. These connectors are recognized for their reliability in large system board applications. The M22-5431005 specifically denotes a 20-position variant within this extensive family of interconnect solutions.
