M22-6340342

Headers, Receptacles, Female Sockets Overview

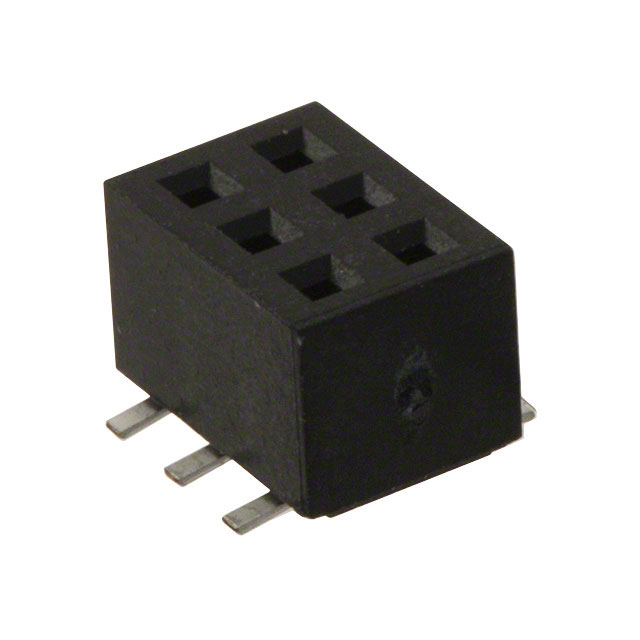

The Harwin M22-6340342 is a surface-mount board-to-board receptacle from the M22 series. It features a 2 mm pitch, two rows, and six female socket contacts. The connector utilizes gold-plated copper alloy contacts for reliable signal transmission. It supports both top and bottom entry configurations. The housing is constructed from high-temperature thermoplastic rated UL 94V-0. Operating temperature ranges from -40°C to +105°C. Current rating is 2A per contact.

Headers, Receptacles, Female Sockets Feature Summary

• Low profile design optimized for space-constrained applications
• Secure surface mount termination for robust PCB attachment
• High-temperature resistant housing material ensuring thermal stability

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections in compact electronic modules
• Industrial control systems requiring reliable surface mount connectors
• Telecommunications equipment with strict spatial limitations

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix (R) if reel packaging is required, as standard versions may come in cut tape. Confirm that the 2mm pitch and 6-position configuration match the target PCB footprint exactly. Ensure the selected variant supports the necessary current rating of 2A for the intended circuit load without derating issues.

Headers, Receptacles, Female Sockets Selection Notes

Choose this component when a low-profile, double-row header is needed for direct board stacking. The SMT mounting style eliminates the need for through-hole drilling, saving panel space. Verify compatibility with mating pin headers from the same M22 series to ensure proper alignment and secure connection during assembly.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin M22 series, known for its modular design and high-density capabilities. The series offers various row counts and pitches to accommodate diverse connectivity needs. The M22-6340342 specifically addresses requirements for small-form-factor electronics where vertical space is limited but reliable electrical performance is critical.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must maintain the 2mm pitch, 6-position count, and dual-row layout. Verify that alternative manufacturers offer compatible surface mount footprints and identical housing heights to prevent mechanical interference.
