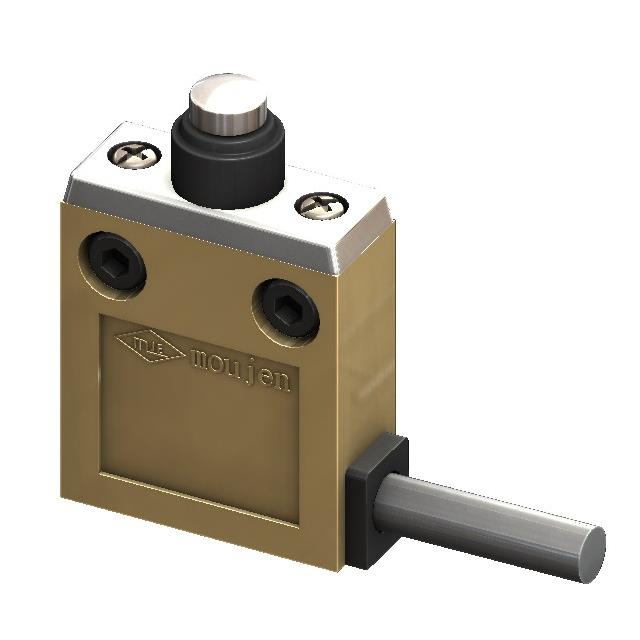

M4-4111S-Z2L

M4-4111S-Z2L is listed in the Limit Switches range at ChipApex. The manufacturer field lists Moujen. Its product description is SWITCH SNAP ACTION SPDT 5A 250V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for M4-4111S-Z2L

• Description：SWITCH SNAP ACTION SPDT 5A 250V
• Series：M4
• Mfr：Moujen
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：5A (AC), 400mA
• Voltage Rating - AC：250 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Chassis Mount
• Termination Style：Cable Leads
• Ingress Protection：IP67F - Dust Tight, Oil Resistant, Waterproof
• Features：Actuator Seal Boot
• Operating Force：1800gf
• Release Force：450gf
• Operating Position：-
• Pretravel：0.071" (1.8mm)
• Differential Travel：0.008" (0.2mm)
• Overtravel：0.118" (3.0mm)
• Operating Temperature：-20°C ~ 70°C
• Voltage Rating - DC：125 V

Limit Switches datasheet and documents for M4-4111S-Z2L
