M50-3200945

Headers, Receptacles, Female Sockets Overview

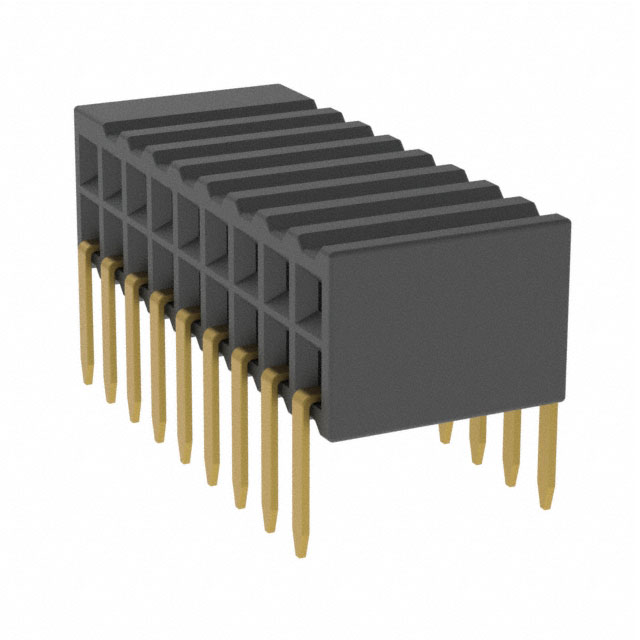

The M50-3200945 is a 18-position (9+9) rectangular socket connector from the Harwin Archer M50 series. It features a 0.050-inch (1.27mm) pitch with two rows of female contacts. Designed for surface-mount installation, it utilizes right-angle termination for PCB integration. The contacts are gold-plated phosphor bronze, ensuring reliable signal transmission. The housing is constructed from black polyamide (PA9T) nylon with UL94 V-0 flammability rating. Rated for 1A current and operating between -40°C and 105°C.

Headers, Receptacles, Female Sockets Feature Summary

• Surface-mount right-angle design for compact board integration
• Gold-plated phosphor bronze contacts for corrosion resistance
• High-temperature resistant PA9T insulation material

Headers, Receptacles, Female Sockets Applications

• General electronic interconnects
• Medical equipment signal routing
• Telecommunications hardware

Headers, Receptacles, Female Sockets Procurement Notes

Verify component authenticity through authorized channels due to end-of-life status. Confirm pin count and orientation match design requirements. Check for RoHS compliance documentation. Validate storage conditions to prevent contact degradation. Ensure compatible mating headers are selected for system integration.

Headers, Receptacles, Female Sockets Selection Notes

Select this part for applications requiring low-profile surface-mount connections. Suitable for high-density layouts where right-angle routing is necessary. Consider thermal management capabilities during operation. Evaluate space constraints against the connector's physical dimensions. Verify mating partner compatibility within the Archer series ecosystem.

Headers, Receptacles, Female Sockets Part Context

Part of the Archer M50 family, known for high-reliability interconnect solutions. The series supports various configurations including IDC and wire-to-board options. Widely used in industrial and consumer electronics sectors. Provides consistent performance across temperature extremes. Offers robust mechanical stability for demanding environments.

Headers, Receptacles, Female Sockets Replacement Considerations

This specific part number is listed as obsolete. Cross-reference with other M50 series sockets or equivalent 1.27mm pitch connectors. Verify pinout compatibility before substitution. Assess mechanical fit and electrical ratings of alternatives.
