M50-3203245

Description：CONN RCPT 64P 0.05 GOLD PCB R/A
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:ae8cdde03f30 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-3203245 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 64P 0.05 GOLD PCB R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M50-3203245

Description：CONN RCPT 64P 0.05 GOLD PCB R/A
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：64
Number of Positions Loaded：All
Pitch - Mating：0.050" (1.27mm)
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Insulation Color：Black
Insulation Height：0.136" (3.46mm)
Contact Length - Post：0.094" (2.40mm)
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for M50-3203245

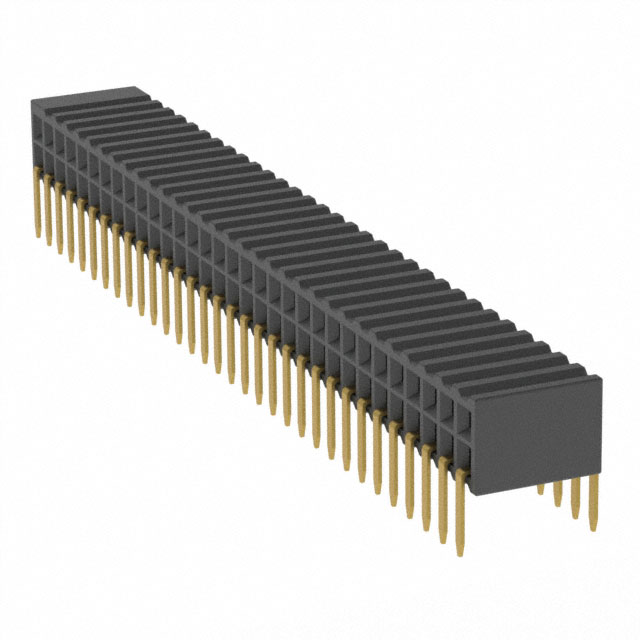

M50-3203245

Headers, Receptacles, Female Sockets Overview

The Harwin M50-3203245 is a 64-position receptacle connector from the Archer M50 series. It features a 1.27mm (0.050 inch) pitch and utilizes two rows of female sockets. Designed for board-to-board or cable applications, this component employs a push-pull locking mechanism for secure attachment. The contacts are gold-plated phosphor bronze with a 10.0µin thickness. It supports through-hole right-angle mounting and operates within a temperature range of -40°C to 105°C.

Headers, Receptacles, Female Sockets Feature Summary

Push-pull locking mechanism ensures secure connection retention
Gold-plated phosphor bronze contacts provide reliable conductivity
Right-angle through-hole mounting facilitates compact PCB layouts

Headers, Receptacles, Female Sockets Applications

Board-to-board interconnects
Cable-to-board connections
Telecommunications equipment
Medical devices

Headers, Receptacles, Female Sockets Procurement Notes

Verify current availability status as distribution channels may vary. Confirm that the specific suffix corresponds to the 64-position variant. Ensure compatibility with mating pin headers regarding pitch and row configuration. Check for any recent product change notifications affecting specifications.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when a high-density 1.27mm pitch receptacle with a push-pull lock is required. The right-angle orientation suits space-constrained vertical stacking. Verify that the 1A current rating meets circuit requirements. Ensure the PCB footprint matches the specified through-hole dimensions.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Harwin Archer M50 series, characterized by its 1.27mm pitch and robust mechanical design. The series offers various configurations including different pin counts and mounting styles. The M50-3203245 specifically addresses needs for dense, reliable interconnections in professional electronic assemblies.
