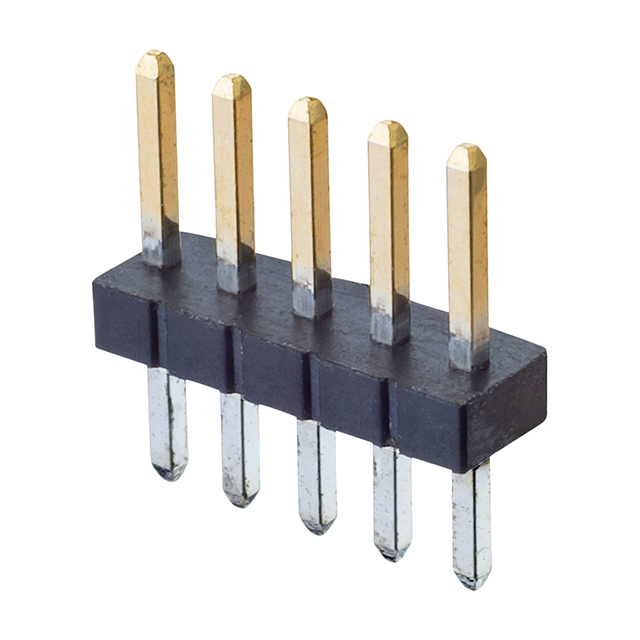

M50-3530542

$0.19

Description：CONN HEADER VERT 5POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Box

SKU:d3bf3d2d837c Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-3530542 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 5POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-3530542

Description：CONN HEADER VERT 5POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Box
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：5
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.118" (3.00mm)
Contact Length - Post：0.091" (2.30mm)
Overall Contact Length：0.248" (6.30mm)
Insulation Height：0.039" (1.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA9T), Nylon 9T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-3530542

M50-3530542

Headers, Male Pins Overview

The Harwin M50-3530542 is a single-row pin header from the ARCHER M50 series, designed for through-hole board-to-board connections. It features five male contacts with a 1.27 mm pitch and operates within a temperature range of -40°C to +105°C. The connector utilizes brass contacts with selective gold and tin plating, housed in black polyamide (PA) insulation rated UL 94 V-0. Rated for 1 A current, it offers an insulation resistance of 1 GOhms. The unit weighs 77 mg and is supplied in bulk packaging.

Headers, Male Pins Feature Summary

Selective gold and tin contact plating ensures reliable electrical performance and corrosion resistance.
Polyamide housing provides high thermal stability and UL 94 V-0 flammability rating.
Through-hole termination supports secure mechanical mounting on printed circuit boards.

Headers, Male Pins Applications

High-density electronic assemblies requiring precise board-to-board interconnection
Industrial control systems operating in extreme temperature environments
Automotive electronics demanding robust signal transmission

Headers, Male Pins Procurement Notes

Verify the specific suffix code against official Harwin documentation to confirm contact plating variations and mating pin height specifications. Ensure compatibility with existing PCB footprint designs and mating socket assemblies before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a vertical, single-row configuration is required for space-constrained layouts. The 1.27 mm pitch allows for dense circuit routing while maintaining adequate spacing for high-reliability applications.

Headers, Male Pins Part Context

This part belongs to the ARCHER M50 series, which specializes in compact, high-reliability connectors for harsh environments. The series offers various configurations including shunts and jumper sockets to facilitate efficient manufacturing and testing processes.
