M50-3531042

Headers, Male Pins Overview

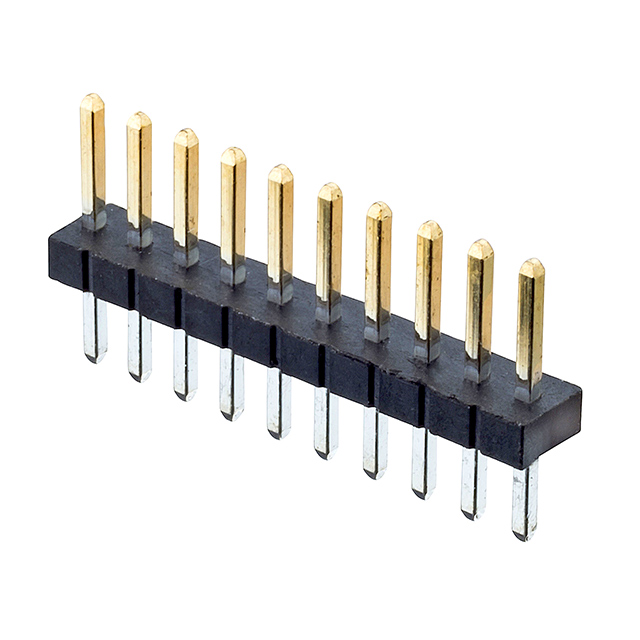

The M50-3531042 is a single-row male pin header from the Harwin Archer M50 series, designed for board-to-board interconnections. It features a 1.27mm (0.050 inch) pitch and provides ten positions. The connector utilizes through-hole termination for surface mounting on printed circuit boards. Constructed with brass contacts and polyamide insulation, it supports a rated current of 1A per contact. The unit operates within a temperature range of -40°C to +105°C and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Offers extensive mating height compatibility with sockets ranging from 2.2mm to 8.5mm.
• Features square-shaped contacts with gold plating for reliable signal transmission.
• Utilizes a push-pull locking mechanism for secure connection retention.

Headers, Male Pins Applications

• Board-to-board interconnects in compact electronic assemblies
• Industrial control systems requiring robust connectivity
• Consumer electronics utilizing fine-pitch headers

Headers, Male Pins Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm exact pin count and row configuration. Ensure the selected variant matches the required mating height specifications for the target application. Cross-reference the datasheet for precise mechanical dimensions and material certifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 1.27mm pitch header is required for through-hole assembly. Consider the available mating heights to ensure compatibility with the corresponding socket or cable assembly. Verify that the 1A current rating and thermal performance meet the operational requirements of the specific circuit design.

Headers, Male Pins Part Context

This part belongs to the Archer M50 series, which provides high-density interconnection solutions. The series is characterized by its fine 1.27mm pitch and versatile mounting options. It is widely used in applications demanding reliable electrical connections in space-constrained environments.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin Archer M50 series headers with identical 1.27mm pitch and through-hole termination. Ensure any replacement maintains the same ten-position configuration and single-row layout to preserve mechanical fit.
