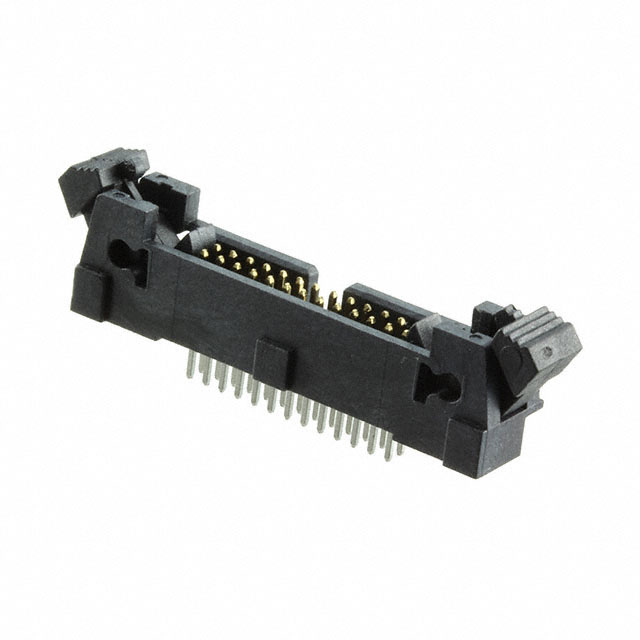

M50-3551342

M50-3551342 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 26POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-3551342

• Description：CONN HEADER VERT 26POS 1.27MM
• Series：Archer M50
• Mfr：Harwin Inc.
• Package：Tube
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.050" (1.27mm)
• Number of Positions：26
• Number of Rows：2
• Row Spacing - Mating：0.050" (1.27mm)
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Latch Lock/Eject Hooks
• Contact Length - Mating：0.120" (3.05mm)
• Contact Length - Post：0.107" (2.71mm)
• Overall Contact Length：0.351" (8.92mm)
• Insulation Height：0.325" (8.25mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：Flash
• Contact Finish - Post：Tin
• Contact Material：Brass
• Insulation Material：Liquid Crystal Polymer (LCP), Glass Filled
• Features：Keying Slot
• Operating Temperature：-55°C ~ 125°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：1.75A per Contact
• Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-3551342
