M50-3600542P

Headers, Male Pins Overview

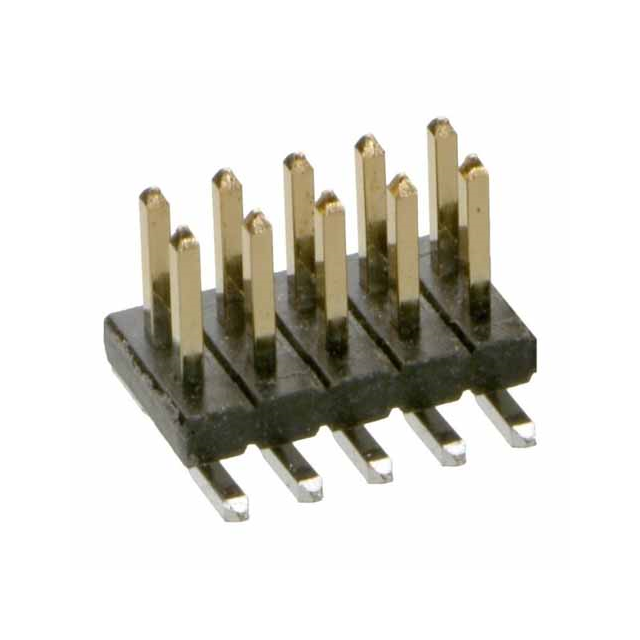

The Harwin M50-3600542P is a surface mount pin header from the ARCHER M50 series, designed for board-to-board and wire-to-board connections. It features a 1.27mm pitch with 10 positions arranged in two rows. The connector utilizes gold-plated copper alloy contacts and a nylon housing. Rated for 1kV voltage and 1A current, it operates within a temperature range of -40°C to 105°C. The component employs solder termination with a tail pin length of 2.3mm and a mating pin length of 3mm.

Headers, Male Pins Feature Summary

• Surface mount design for automated assembly processes
• Gold-plated contacts ensure reliable signal transmission
• High voltage insulation rating for demanding environments

Headers, Male Pins Applications

• Board-to-board interconnects
• Wire-to-board connections
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix 'P' against official Harwin documentation to confirm exact plating or packaging specifications. Ensure compatibility with standard SMT reflow profiles. Confirm that the 1.27mm pitch aligns with the target PCB footprint design requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when surface mount technology is required for high-density connections. The 10-position configuration suits applications needing multiple signals in a compact area. Verify that the 1kV insulation rating meets the system's electrical safety standards and that the operating temperature range covers the intended environment.

Headers, Male Pins Part Context

This part belongs to the ARCHER M50 series, which offers various configurations including vertical and right-angle headers. The M50 series is characterized by its 1.27mm pitch and robust construction suitable for industrial and commercial electronics. This specific model represents a straight SMT plug variant within the broader family.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin M50 series headers with identical 10-position, 2-row, 1.27mm pitch specifications. Ensure any replacement maintains the same surface mount termination style and contact material properties to preserve mechanical and electrical integrity.
