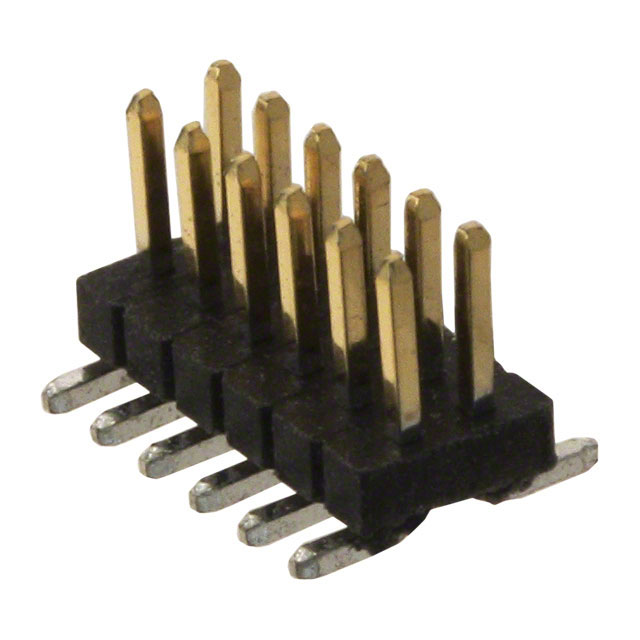

M50-3600642

$1.40

Description：CONN HEADER SMD 12POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Bulk

SKU:7fe695e1a13c Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-3600642 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 12POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-3600642

Description：CONN HEADER SMD 12POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：12
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.118" (3.00mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.039" (1.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：3.00µin (0.076µm)
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-3600642

M50-3600642

Headers, Male Pins Overview

The M50-3600642 is a 12-position, dual-row pin header from the Harwin ARCHER M50 series. It features a 1.27 mm (0.05 in) pitch and is designed for surface mount (SMD/SMT) installation with straight termination. The connector utilizes gold-plated brass contacts and offers a mating pin length of 3 mm (0.118 in). Rated for 1 A current and 250 V voltage, it operates within a temperature range of -40°C to +105°C. The housing is black thermoplastic with UL 94 V-0 flammability rating.

Headers, Male Pins Feature Summary

Dual-row male pin configuration for board-to-board or wire-to-board interconnects
Surface mount termination with push-pull locking mechanism
Gold-plated brass contacts ensuring reliable signal transmission
Compatible with pick-and-place automated assembly processes

Headers, Male Pins Applications

Board-to-board connections in compact electronic assemblies
Wire-to-board interfaces requiring high-density routing
Automated surface mount technology (SMT) production lines
Industrial control modules operating in extreme temperatures

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm mechanical dimensions and contact plating specifications. Ensure compatibility with existing PCB footprint designs and reflow soldering profiles. Cross-reference RoHS compliance status and lead times directly with authorized distributors or the manufacturer before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, dual-row SMT header with 1.27 mm pitch is required. Consider the 1 A current rating and 250 V insulation voltage for circuit requirements. Verify that the straight orientation and 3 mm mating height fit within the enclosure constraints. Confirm that the push-pull locking feature meets the mechanical retention needs of the application.

Headers, Male Pins Part Context

This component belongs to the ARCHER M50 series, a family of high-density connectors known for their slim profile and robust performance. The series supports various configurations including headers, sockets, and IDC connectors, all sharing the standardized 1.27 mm pitch architecture for interoperability across different connector types within the same ecosystem.
