M50-3600642R

Headers, Male Pins Overview

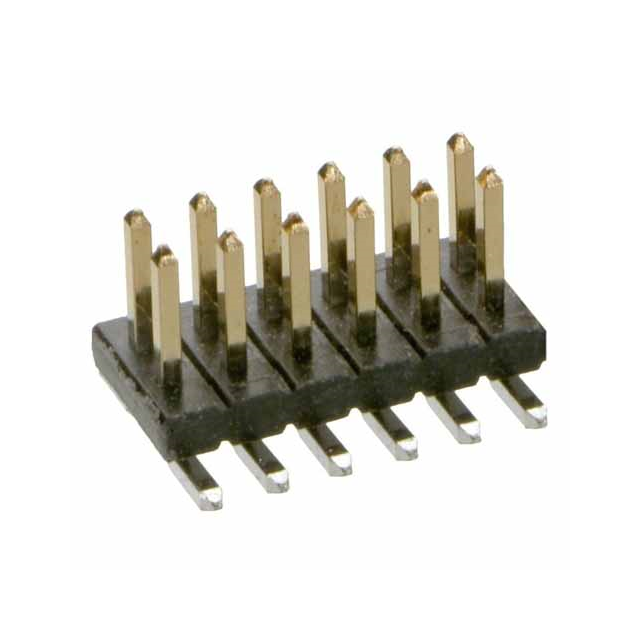

The Harwin M50-3600642R is a surface mount header connector from the Archer M50 series. It features 12 positions arranged in a dual in-line (DIL) configuration with two rows of six pins each. The connector utilizes a 1.27mm pitch for mating contacts and supports board-to-board or cable applications. Rated for 1A current and 250V voltage, it operates within a temperature range of -55°C to 105°C. The housing is black thermoplastic with UL94 V-0 flammability rating. Pins are made of brass with gold plating on mating surfaces and tin on tails, secured via push-pull locking.

Headers, Male Pins Feature Summary

• Vertical surface mount design for compact PCB integration
• Push-pull locking mechanism ensures secure mating retention
• Dual row DIL configuration with square pin contacts

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• Compact electronic module assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'R' confirms reel packaging availability when required for automated assembly processes. Confirm that the standard lead time aligns with production schedules, as manufacturing timelines may vary. Ensure compatibility with existing pick-and-place equipment specifications for surface mount components. Cross-reference the datasheet for any recent updates regarding material compliance or environmental certifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component for applications requiring a low-profile vertical header with reliable mechanical retention. The 1.27mm pitch suits dense circuit layouts where space is limited. Consider the push-pull feature if frequent disconnection or high vibration resistance is needed. Verify that the 1A current rating meets the electrical load requirements of the target circuit design without overheating concerns.

Headers, Male Pins Part Context

This part belongs to the Harwin Archer M50 series, designed for high-density interconnect solutions. The series offers various position counts and mounting styles, including through-hole and surface mount options. The M50-3600642R specifically addresses needs for small-footprint, robust connectors in consumer and industrial electronics.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate cross-compatibility based on pitch, pin count, and mechanical dimensions if alternatives are necessary.
