M50-3601542

Headers, Male Pins Overview

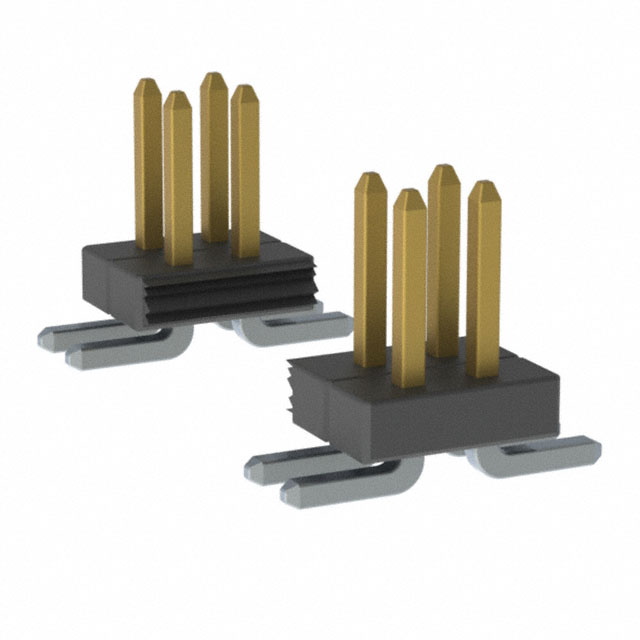

The M50-3601542 is a vertical surface mount pin header from the Harwin Archer M50 series. It features a 1.27 mm pitch with two rows and thirty contacts. The connector utilizes gold-plated brass pins and a black thermoplastic housing rated UL94 V-0. It supports a current rating of 1A and operates within a temperature range of -40°C to +105°C. Designed for board-to-board applications, it offers a mating stacking height suitable for compact electronic assemblies.

Headers, Male Pins Feature Summary

• Vertical surface mount design for space-efficient PCB integration
• Gold-plated brass contacts ensure reliable signal transmission
• UL94 V-0 rated thermoplastic housing provides flame resistance

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronics
• High-density circuit board assembly
• Industrial control modules requiring reliable vertical mounting

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm contact count and orientation. Ensure compatibility with mating connectors regarding pitch and stacking height. Check RoHS compliance status through authorized distributors. Confirm surface mount package integrity before procurement.

Headers, Male Pins Selection Notes

Select this component for applications requiring vertical SMT headers with high density. The 1.27 mm pitch suits tight spacing requirements. Verify thermal management needs against the 105°C maximum operating limit. Ensure PCB layout accommodates the vertical profile and soldering process constraints.

Headers, Male Pins Part Context

This component belongs to the Archer M50 series, known for fine-pitch connectivity solutions. The series emphasizes reliability in demanding environments. The M50-3601542 variant specifically addresses vertical mounting needs with standardized dimensions. It complements other M50 series components for complete system integration.

Headers, Male Pins Replacement Considerations

Consult Harwin's official substitution guide for verified alternatives. Generic equivalents may not match the precise stacking height or contact plating specifications. Verify mechanical fit and electrical ratings before considering cross-brand replacements.
