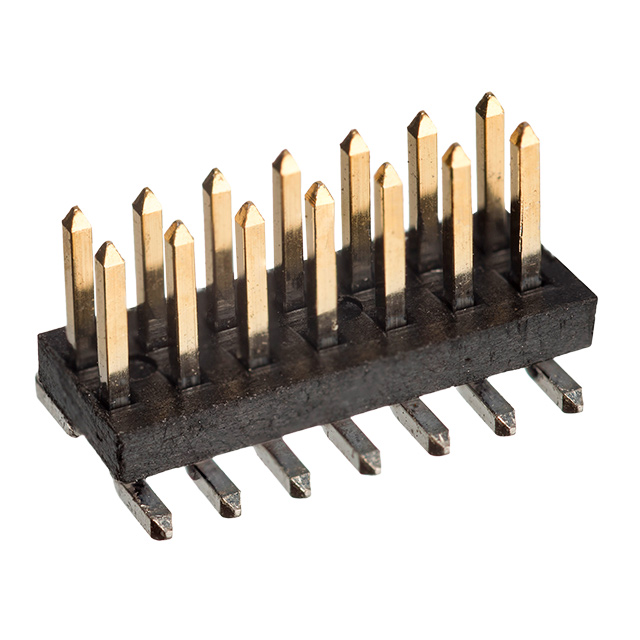

M50-3610742R

$1.78

Description：CONN HEADER SMD 14POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:dfb624139671 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-3610742R is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 14POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-3610742R

Description：CONN HEADER SMD 14POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：14
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.118" (3.00mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.039" (1.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Thermoplastic
Features：Board Guide, Pick and Place
Operating Temperature：-55°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A
Voltage Rating：250V

Headers, Male Pins datasheet and documents for M50-3610742R

M50-3610742R

Headers, Male Pins Overview

The M50-3610742R is a 20-position dual in-line (DIL) surface-mount header from the Harwin ARCHER series. It features a 1.27 mm pitch and operates within a temperature range of -40°C to +105°C. The connector utilizes gold-plated brass contacts with a mating post length of 3 mm. Rated for 1 A current at 250 V, it employs a black thermoplastic housing compliant with UL 94 V-0 flammability standards. Designed for straight SMD installation, it offers 1 GOhm insulation resistance and is supplied in tape-and-reel packaging.

Headers, Male Pins Feature Summary

Dual-row surface-mount architecture designed for high-density board integration
Gold-plated brass contacts ensure reliable signal transmission and corrosion resistance
Low-profile vertical design facilitates compact electronic device assembly

Headers, Male Pins Applications

High-density consumer electronics interconnects
Industrial control system circuit boards
Automotive embedded module connections

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized Harwin distributors or certified partners. Confirm RoHS compliance status via official documentation prior to procurement. Ensure storage conditions maintain integrity of the gold-plated contacts and thermoplastic housing. Validate that the specific reel quantity matches production requirements to avoid supply chain discrepancies.

Headers, Male Pins Selection Notes

Select this component for applications requiring a 1.27 mm pitch DIL interface with surface-mount capabilities. The 1 A current rating and 250 V voltage limit define its electrical boundaries. Consider the -40°C to +105°C operating range for environmental suitability. The straight orientation and SMT style dictate PCB layout constraints and assembly processes.

Headers, Male Pins Part Context

This part belongs to the ARCHER M50 series, characterized by fine-pitch connectivity solutions. The series emphasizes reliability in space-constrained environments through robust mechanical design and consistent electrical performance. It complements other ARCHER components for complete system integration.
