M50-3630442

$0.32

Description：CONN HEADER SMD 4POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:35cd08c075af Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-3630442 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 4POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-3630442

Description：CONN HEADER SMD 4POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：4
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.118" (3.00mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.039" (1.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA9T), Nylon 9T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-3630442

M50-3630442

Headers, Male Pins Overview

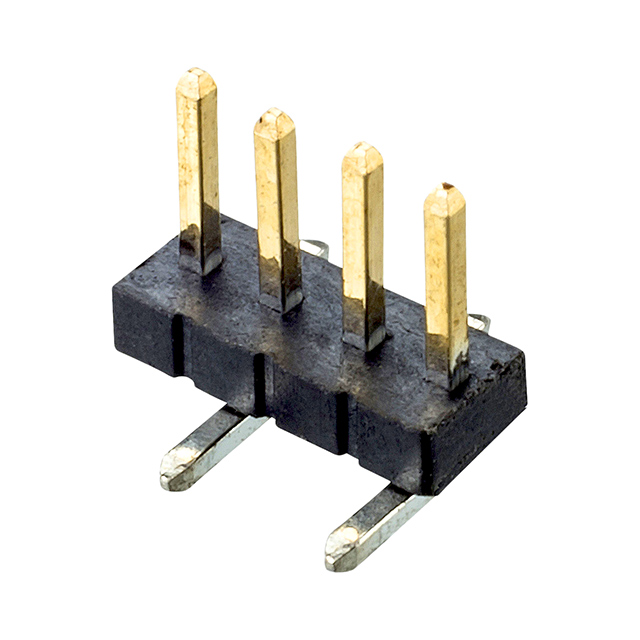

The M50-3630442 is a surface-mount header from the Harwin Archer M50 series. It features 4 positions with a 1.27mm (0.050 inch) pin spacing and a 1.27mm row pitch. The connector utilizes gold-plated phosphor bronze contacts housed in black polybutylene terephthalate (PBT). Designed for vertical installation, it supports a maximum operating temperature of 105°C and a minimum of -40°C. The housing meets UL 94 V-0 flammability ratings.

Headers, Male Pins Feature Summary

Vertical surface-mount architecture for compact PCB integration
Gold-plated phosphor bronze contacts for reliable conductivity
Black PBT housing with UL 94 V-0 flammability rating

Headers, Male Pins Applications

High-density board-to-board interconnects
Compact electronic module assembly
Surface-mount signal routing

Headers, Male Pins Procurement Notes

Verify the specific suffix against the manufacturer datasheet to confirm contact plating thickness and housing color variants. Ensure the selected component matches the required vertical orientation and surface-mount termination style for the target PCB layout. Confirm RoHS compliance status through official documentation prior to procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, four-position vertical header is required for dense circuit designs. The 1.27mm pitch accommodates standard ribbon cable or mating connectors within the Archer M50 ecosystem. Verify that the surface-mount footprint aligns with the PCB fabrication capabilities and thermal requirements during reflow soldering processes.

Headers, Male Pins Part Context

This part belongs to the Archer M50 family, characterized by fine 1.27mm pitch IDC and board-to-board solutions. The series emphasizes high reliability and fast connection speeds using fine ribbon cables without specialized tooling. The M50-3630442 specifically addresses the need for small-footprint vertical headers within this robust connectivity portfolio.
