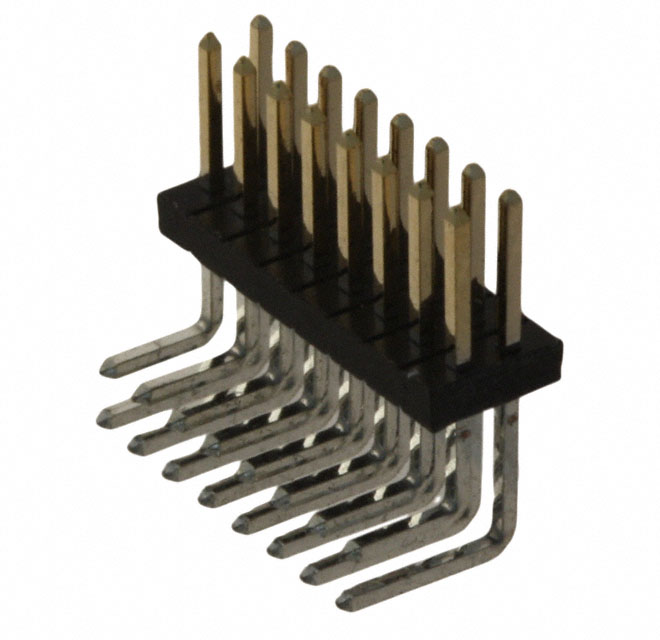

M50-3900842

$2.32

Description：CONN HEADER R/A 16POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Bulk

SKU:ff8b589404fa Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-3900842 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 16POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-3900842

Description：CONN HEADER R/A 16POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：16
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.150" (3.81mm)
Contact Length - Post：0.079" (2.00mm)
Overall Contact Length：-
Insulation Height：0.039" (1.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：3.00µin (0.076µm)
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-3900842

M50-3900842

Headers, Male Pins Overview

The M50-3900842 is a pin header connector from the Harwin Archer M50 series. It features 16 contacts arranged in two rows with a 1.27 mm pitch. The component utilizes through-hole termination for board mounting and is designed in a right-angle configuration. Electrical specifications include a current rating of 1 A and a voltage rating of 1 kV AC. The housing is constructed from black polybutylene terephthalate (PBT), while the contacts are made of phosphor bronze with gold plating. The operating temperature range spans from -40°C to +105°C.

Headers, Male Pins Feature Summary

Right-angle design facilitates compact board-to-board or wire-to-board connections.
Gold-plated phosphor bronze contacts ensure reliable signal transmission and corrosion resistance.
High-voltage insulation capability supports demanding electrical environments.

Headers, Male Pins Applications

Industrial control systems
Consumer electronics assemblies
Telecommunications equipment

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required contact count, row configuration, and termination style. Confirm compliance with relevant safety standards and environmental regulations applicable to the target deployment region before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle interconnect solution is required for dense circuit layouts. Ensure the mating connector aligns with the 1.27 mm pitch and dual-row architecture. Consider thermal management requirements given the 105°C maximum operating limit.

Headers, Male Pins Part Context

This connector belongs to the Archer M50 family, which provides high-density interconnect options for modern electronic designs. The series offers various configurations including straight and angled headers, shunts, and sockets to support flexible system integration needs.
