M50-4300545

$1.95

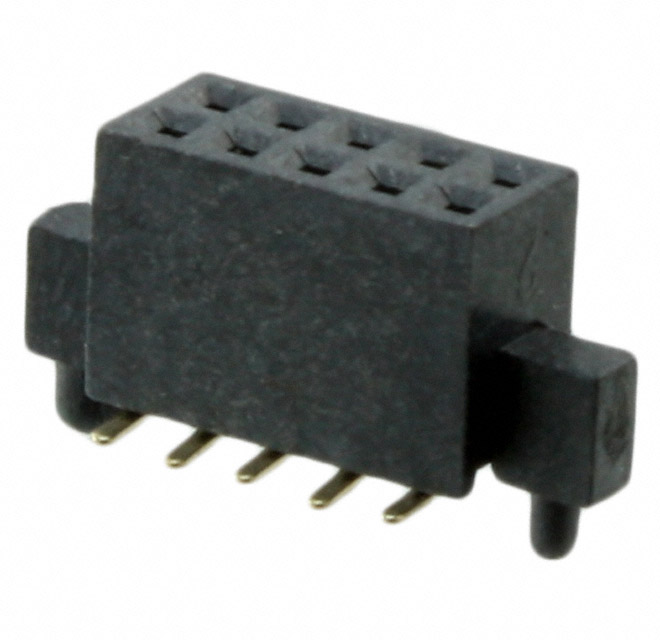

Description：CONN RCPT 10POS 0.05 GOLD SMD
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:d35796de6a1e Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4300545 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 10POS 0.05 GOLD SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M50-4300545

Description：CONN RCPT 10POS 0.05 GOLD SMD
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board
Number of Positions：10
Number of Positions Loaded：All
Pitch - Mating：0.050" (1.27mm)
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Insulation Color：Black
Insulation Height：0.181" (4.60mm)
Contact Length - Post：-
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：6mm, 6.5mm
Ingress Protection：-
Features：Board Guide
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for M50-4300545

M50-4300545

Headers, Receptacles, Female Sockets Overview

The M50-4300545 is a 10-position board-to-board receptacle from the Harwin Archer M50 series. It features a 1.27 mm pitch and dual-row configuration with surface mount termination. The connector utilizes gold-plated phosphor bronze contacts housed in black liquid crystal polymer (LCP). Rated for 1 kV voltage and 12 A current, it operates between -40°C and +105°C. This vertical socket assembly provides reliable high-density interconnection for PCB applications.

Headers, Receptacles, Female Sockets Feature Summary

High dielectric strength rated at 1 kV for robust electrical isolation
Gold-plated phosphor bronze contacts ensure stable signal transmission
Liquid crystal polymer housing offers superior thermal stability
Surface mount design facilitates automated PCB assembly

Headers, Receptacles, Female Sockets Applications

High-voltage circuit board interconnections
Industrial control system modules
Automotive electronic assemblies
Power supply unit connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm exact pin count and termination style. Ensure compatibility with mating header specifications regarding voltage ratings and current capacity. Confirm RoHS compliance status through manufacturer datasheets prior to integration into regulated environments.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when high voltage isolation is required alongside compact surface mount packaging. The 1.27 mm pitch allows for dense layouts while maintaining safety margins. Verify that the operating temperature range meets the environmental requirements of the target application scenario.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Archer M50 series, designed for demanding applications requiring high reliability. The series supports various configurations including through-hole and IDC options. The M50-4300545 specifically addresses needs for vertical SMT connections with enhanced electrical performance characteristics.
