M50-4301445

Headers, Receptacles, Female Sockets Overview

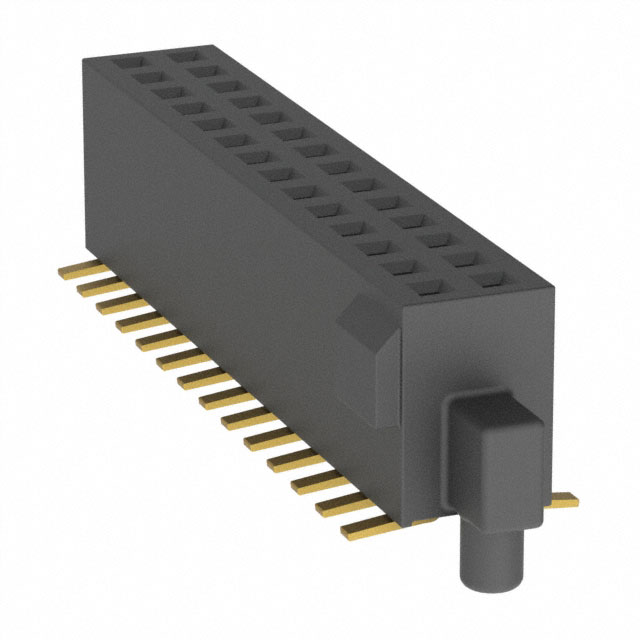

The Harwin M50-4301445 is a board-to-board receptacle connector from the Archer M50 series. It features a dual-in-line configuration with 28 positions (14+14) arranged in two rows. The component utilizes a 1.27 mm pitch and is designed for surface-mount technology (SMT) installation. Contacts are gold-plated phosphor bronze sockets, housed in black thermoplastic. It operates within a temperature range of -40°C to +105°C.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-row vertical socket assembly for high-density interconnects
• Gold-plated contacts ensure reliable signal transmission
• Surface-mount design facilitates automated PCB assembly

Headers, Receptacles, Female Sockets Applications

• High-density electronic module connections
• Industrial control system backplanes
• Telecommunications equipment interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix '445' against the manufacturer's current datasheet to confirm contact plating thickness and material specifications. Ensure the ordering part number matches the required pin count and row configuration. Confirm RoHS compliance status and moisture sensitivity level requirements prior to procurement to align with production standards.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 1.27 mm pitch dual-row SMT receptacle is required. Consider the 28-position capacity and vertical orientation for space-constrained designs. Verify that the mating header corresponds to the same series and pitch to ensure mechanical compatibility and electrical integrity.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Archer M50 family, characterized by compact dimensions and robust performance. The series supports various configurations including headers, IDC, and board-to-board connectors. The M50-4301445 specifically addresses needs for reliable vertical stacking or edge-card applications in modern electronics.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other Harwin M50 series variants with matching 1.27 mm pitch and 28-pin DIL configuration. Cross-brand replacements require verification of identical pitch, row count, and mounting style.
