M50-4301845

Description：CONN RCPT 36POS 0.05 GOLD SMD
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:3e38634b542d Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4301845 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 36POS 0.05 GOLD SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M50-4301845

Description：CONN RCPT 36POS 0.05 GOLD SMD
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board
Number of Positions：36
Number of Positions Loaded：All
Pitch - Mating：0.050" (1.27mm)
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Insulation Color：Black
Insulation Height：0.181" (4.60mm)
Contact Length - Post：-
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：6mm, 6.5mm
Ingress Protection：-
Features：Board Guide
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for M50-4301845

M50-4301845

Headers, Receptacles, Female Sockets Overview

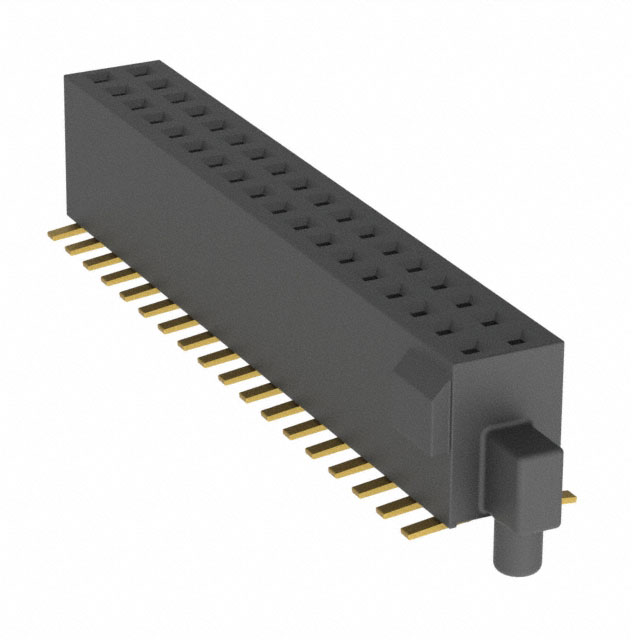

The Harwin M50-4301845 is a surface-mount board-to-board receptacle connector from the Archer M50 series. It features a dual-row configuration with 36 positions and a 1.27 mm pitch. The contacts are gold-plated phosphor bronze, housed in black liquid crystal polymer (LCP). Rated for 1 kV and 12 A, it operates between -40°C and +105°C. The unit height is 4.60 mm, and it complies with RoHS standards.

Headers, Receptacles, Female Sockets Feature Summary

High-voltage insulation capability up to 1 kV for demanding circuit isolation
Gold-plated contacts ensure reliable signal transmission and corrosion resistance
Liquid crystal polymer housing provides thermal stability and flame retardancy

Headers, Receptacles, Female Sockets Applications

High-density electronic assemblies requiring robust board-to-board connections
Industrial control systems operating in extreme temperature environments
Medical equipment utilizing high-voltage isolation requirements

Headers, Receptacles, Female Sockets Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm that the received parts match the specific model number and series designation. Ensure storage conditions comply with moisture sensitivity level guidelines to maintain solderability and performance integrity before assembly.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when high voltage isolation and compact surface-mount integration are required. The 1.27 mm pitch suits dense layouts, while the 1 kV rating exceeds standard low-voltage applications. Verify mechanical clearance for the 4.60 mm height and confirm mating header compatibility within the same series family.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Archer M50 series, designed for high-reliability applications. The series utilizes LCP materials for superior thermal performance. The M50-4301845 specifically addresses needs for high-voltage board-to-board interconnects in space-constrained designs.
