M50-4303445

Description：CONN RCPT 68POS 0.05 GOLD SMD
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:e62cec804cc1 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4303445 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 68POS 0.05 GOLD SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M50-4303445

Description：CONN RCPT 68POS 0.05 GOLD SMD
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board
Number of Positions：68
Number of Positions Loaded：All
Pitch - Mating：0.050" (1.27mm)
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Insulation Color：Black
Insulation Height：0.181" (4.60mm)
Contact Length - Post：-
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：6mm, 6.5mm
Ingress Protection：-
Features：Board Guide
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for M50-4303445

M50-4303445

Headers, Receptacles, Female Sockets Overview

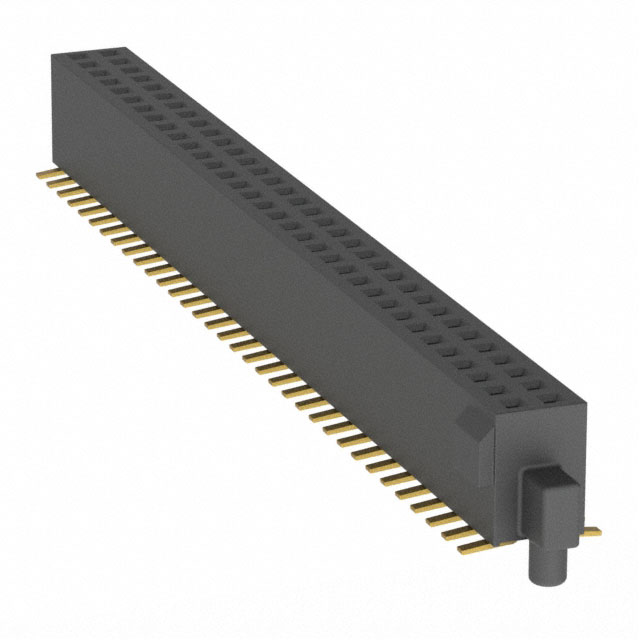

The Harwin M50-4303445 is a board-to-board receptacle connector from the Archer M50 series. It features a dual in-line configuration with 68 positions (34+34). The component utilizes a 1.27 mm pitch and operates via surface mount technology (SMT) installation. Contacts are gold-plated for reliable performance. The housing is black, and the connector is designed for vertical mating applications.

Headers, Receptacles, Female Sockets Feature Summary

Dual row edge-type architecture for high-density interconnects
Gold-plated contacts ensuring corrosion resistance and signal integrity
Vertical SMT mounting style for automated assembly processes

Headers, Receptacles, Female Sockets Applications

High-density board-to-board connections
Industrial control systems requiring robust interconnects
Telecommunications equipment backplanes

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and plating specifications. Ensure compatibility with mating header part numbers within the same M50 series family. Check RoHS compliance status against current regulatory requirements before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 68-position, 1.27mm pitch vertical receptacle is required. Confirm that the PCB layout supports the specific SMT footprint and that the mating connector matches the dual in-line pin count. Verify operating temperature ranges align with system environmental conditions.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Harwin Archer M50 series, which specializes in compact, high-reliability interconnect solutions. The series offers various configurations including headers and sockets with different row counts and termination styles, catering to diverse electronic packaging needs.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must maintain identical 1.27mm pitch, 68-pin count, and SMT vertical orientation. Verify cross-compatibility with existing mating headers to ensure proper mechanical engagement and electrical continuity without redesigning the PCB footprint.
