M50-4701345

Headers, Male Pins Overview

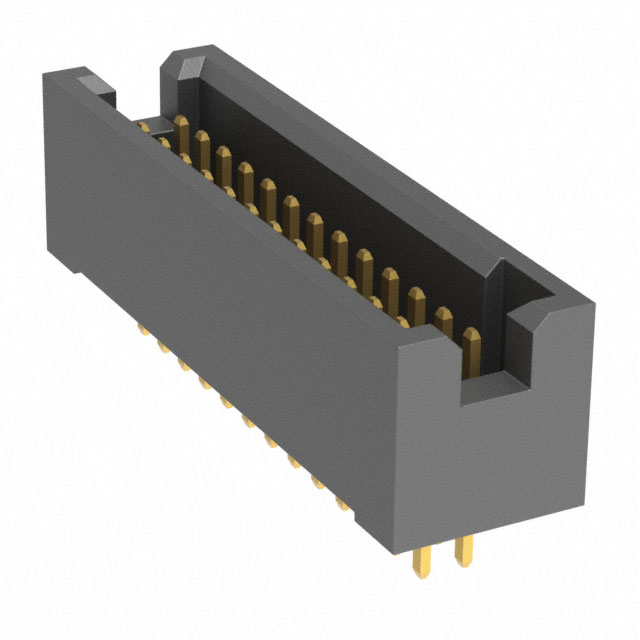

The M50-4701345 is a vertical header connector from the Harwin ARCHER M50 series. It features 26 positions with a 1.27 mm (0.05 in) pitch. The connector utilizes through-hole mounting and straight installation orientation. Male pin contacts are constructed from brass with gold plating. The housing is made of black thermoplastic material. It supports a current rating of 1 A and operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Vertical board-to-board connection architecture
• Gold-plated male pin contact system
• Through-hole solder termination method

Headers, Male Pins Applications

• High-density electronic interconnects
• Industrial control systems
• Telecommunications equipment

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm mechanical dimensions and electrical ratings. Ensure compatibility with mating female connectors regarding pitch and row configuration. Check for RoHS compliance status in the latest datasheet before integration into production designs.

Headers, Male Pins Selection Notes

Select this component when a vertical, high-pin-count interconnect solution is required. The 1.27 mm pitch allows for dense circuit board layouts. Through-hole mounting provides robust mechanical stability compared to surface mount alternatives. Verify that the 1 A current rating meets the application's power requirements.

Headers, Male Pins Part Context

This component belongs to the ARCHER M50 series, designed for compact and reliable connections. The series offers various configurations including surface mount and shrouded options. The M50-4701345 specifically addresses needs for vertical headers with a 26-position capacity, fitting within the broader family of 1.27 mm pitch connectors.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult Harwin directly for cross-reference information or alternative series components that match the required pitch, position count, and mounting style.
