M50-4702245

Headers, Male Pins Overview

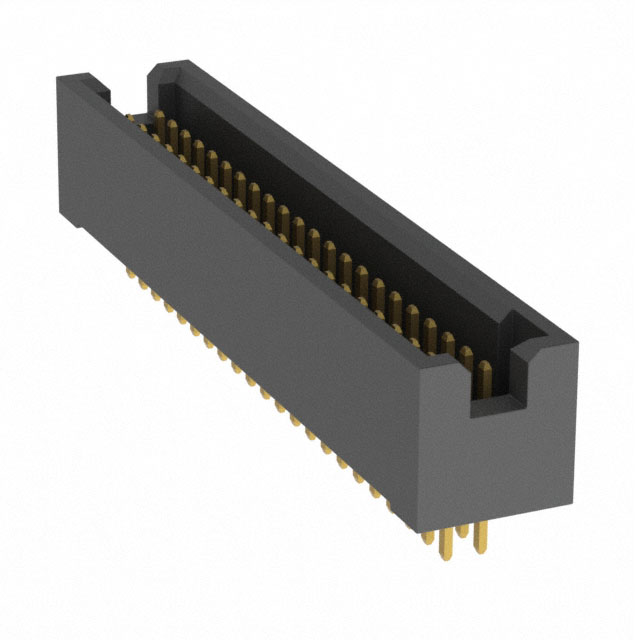

The M50-4702245 is a male pin header from the Harwin Archer M50 series, designed for vertical through-hole mounting. It features a dual in-line configuration with 44 positions (22+22) and a 1.27 mm pitch. The connector utilizes gold-plated phosphor bronze contacts housed in black polybutylene terephthalate (PBT). It includes shrouding to guide mating connectors and ensure proper alignment. The unit weight is 1.38 grams.

Headers, Male Pins Feature Summary

• Vertical through-hole mounting style for direct PCB integration
• Shrouded housing design ensures precise connector alignment during mating
• Gold-plated phosphor bronze contacts provide reliable electrical conductivity

Headers, Male Pins Applications

• Wire-to-board interconnections
• Board-to-board signal transmission
• General electronic equipment internal connections

Headers, Male Pins Procurement Notes

Verify the specific suffix code against official Harwin documentation to confirm exact contact plating thickness and housing material variations. Ensure the ordering part number matches the required 44-position dual in-line configuration. Cross-reference RoHS compliance status with the latest manufacturer datasheet before finalizing procurement specifications.

Headers, Male Pins Selection Notes

Select this component when a vertical, shrouded header with 1.27 mm pitch is required for high-density applications. The dual-row layout supports 44 connections within a compact footprint. Verify that the through-hole termination method aligns with the assembly process and that the PBT housing temperature rating meets operational requirements.

Headers, Male Pins Part Context

This part belongs to the Archer M50 series, characterized by its 1.27 mm pitch and robust mechanical design. The series offers various configurations including straight and right-angle options with different row counts. The M50-4702245 specifically addresses needs for vertically mounted, shrouded headers requiring secure mating guidance.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin M50 series headers with identical 44-position dual in-line geometry and 1.27 mm pitch. Verify compatibility regarding shrouding presence and terminal length. Alternative manufacturers may offer similar pitch connectors but require verification of housing dimensions and contact plating specifications.
