M50-4703245

Headers, Male Pins Overview

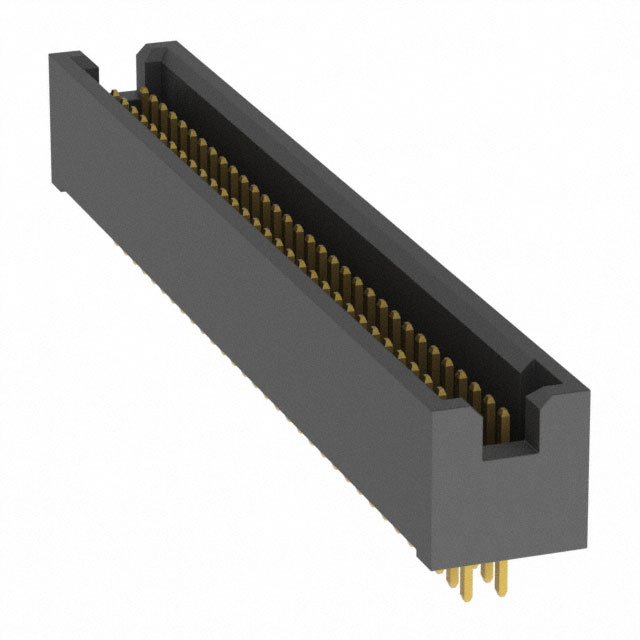

The M50-4703245 is a board-to-board connector header manufactured by Harwin Inc. under the ARCHER M50 series. It features a dual in-line (DIL) configuration with 64 positions, arranged as two rows of 32 contacts each. The component utilizes a 1.27 mm (0.05 inch) pin spacing and operates at a vertical orientation. Designed for through-hole mounting, it incorporates gold-plated male pins and a shrouded housing structure to ensure precise alignment during assembly.

Headers, Male Pins Feature Summary

• Shrouded design provides mechanical stability and prevents misalignment during insertion
• Gold-plated contacts ensure reliable electrical conductivity and corrosion resistance
• Dual in-line layout supports high-density interconnection requirements

Headers, Male Pins Applications

• High-density board-to-board interconnections
• Vertical stacking of printed circuit boards
• Industrial control system backplanes

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 64-position DIL configuration before ordering. Confirm that the through-hole termination style aligns with the target PCB fabrication capabilities. Ensure compatibility with mating receptacles within the same ARCHER M50 series family to maintain correct pitch and shroud dimensions.

Headers, Male Pins Selection Notes

Select this component when a vertical, shrouded header with 1.27 mm pitch is required for robust board-to-board connections. The gold plating offers durability for repeated mating cycles if applicable. Consider the through-hole mounting method for applications requiring higher mechanical strength compared to surface-mount alternatives.

Headers, Male Pins Part Context

This connector belongs to the ARCHER M50 series, which is engineered for compact electronic designs. The series emphasizes reliability in space-constrained environments through its precise 1.27 mm pitch. The M50-4703245 specifically addresses needs for high-pin-count vertical interconnects with enhanced mechanical guidance provided by the shrouded housing.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Harwin ARCHER M50 series headers with matching 1.27 mm pitch and 64-position DIL configurations. Verify that alternative parts maintain identical shrouded geometry and through-hole termination styles to ensure physical interchangeability.
