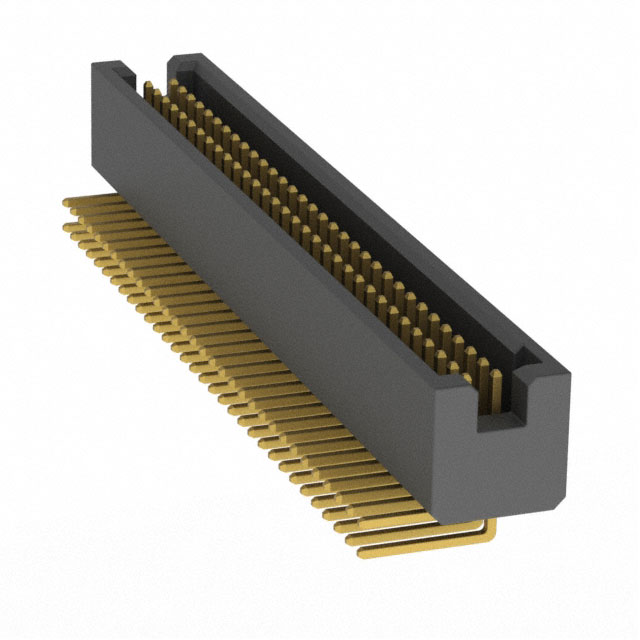

M50-4803245

Description：CONN HEADER R/A 64POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:c52544c50d2e Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4803245 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 64POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-4803245

Description：CONN HEADER R/A 64POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：64
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：0.083" (2.11mm)
Overall Contact Length：-
Insulation Height：0.222" (5.65mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-4803245

M50-4803245

Headers, Male Pins Overview

The Harwin M50-4803245 is a board-to-board connector from the Archer M50 series, designed for surface-mount technology (SMT) applications. It features a dual-in-line configuration with 64 positions arranged in two rows. The component utilizes a 1.27 mm pitch and a 1.27 mm row spacing to facilitate high-density interconnections. The contacts are gold-plated to ensure reliable signal transmission and corrosion resistance. The housing is constructed from black thermoplastic material, providing structural integrity and insulation. This connector is intended for vertical or right-angle mounting on printed circuit boards.

Headers, Male Pins Feature Summary

High-density 64-position dual-in-line layout for compact board-to-board connections
Gold-plated contacts to maintain signal integrity and durability
Surface-mount design compatible with automated assembly processes
Shrouded housing structure to guide mating connectors accurately

Headers, Male Pins Applications

High-density electronic module interconnections
Industrial control system backplanes
Telecommunications equipment internal wiring
Automotive electronics sub-systems

Headers, Male Pins Procurement Notes

Verify the specific orientation variant against the official datasheet, as the model number indicates a right-angle header configuration. Confirm that the gold plating thickness meets the application's endurance requirements. Ensure the PCB footprint matches the specified SMT pad layout to prevent soldering defects during reflow processing.

Headers, Male Pins Selection Notes

Select this component when a high-pin-count, small-pitch connection is required between adjacent circuit boards. The 1.27 mm pitch allows for significant I/O density within a limited area. Consider the right-angle form factor if space constraints require the connected board to be perpendicular to the base board.

Headers, Male Pins Part Context

This part belongs to the Harwin Archer M50 series, which is engineered for robust performance in demanding environments. The series offers various pin counts and configurations to support diverse connectivity needs. The M50-4803245 specifically addresses applications requiring a large number of signals in a minimal footprint.
