M50-4900845R

Headers, Male Pins Overview

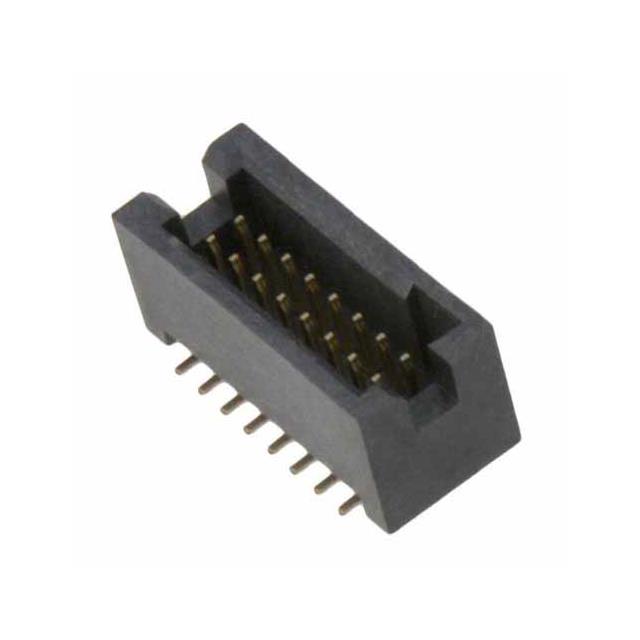

The Harwin M50-4900845R is a surface-mount header connector from the ARCHER M50 series. It features a 16-position, double-row configuration with a 1.27 mm (0.05 in) pitch. The connector utilizes male pin contacts made of phosphor bronze with gold plating for reliable signal transmission. Designed for vertical installation on printed circuit boards, it offers a compact profile with a height of 6.1 mm. The housing is polarized to ensure correct mating alignment during assembly.

Headers, Male Pins Feature Summary

• Polarized shrouded housing design prevents incorrect insertion
• Gold-plated phosphor bronze contacts ensure stable electrical performance
• Vertical surface-mount termination facilitates automated PCB assembly

Headers, Male Pins Applications

• High-density board-to-board interconnections
• Compact electronic device internal wiring
• Automotive control module interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix 'R' indicates tape and reel packaging when sourcing. Confirm active production status through official manufacturer channels. Ensure compatibility with mating sockets regarding polarization keys. Check RoHS compliance documentation for regulatory requirements.

Headers, Male Pins Selection Notes

Select this component for applications requiring high pin density within limited vertical space. The 1.27 mm pitch suits fine-pitch circuit designs. Verify that the 6.1 mm height fits within the mechanical envelope constraints of the final assembly.

Headers, Male Pins Part Context

This part belongs to the ARCHER M50 family, known for robust surface-mount headers. The series supports various position counts while maintaining consistent 1.27 mm spacing. The M50-4900845R specifically addresses needs for 16-contact vertical interconnects.

Headers, Male Pins Replacement Considerations

Direct substitutes are not explicitly confirmed in public data. Consider checking Harwin's current portfolio for equivalent 16-position, 1.27 mm pitch SMT headers with matching polarization and height specifications.
