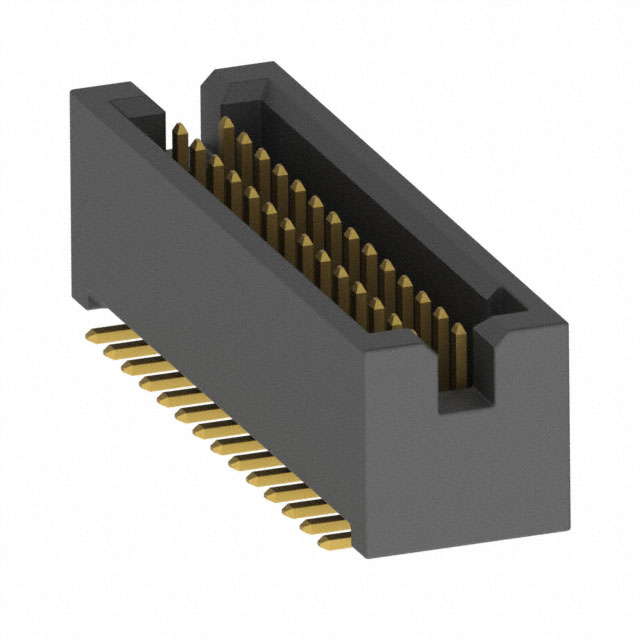

M50-4901445

M50-4901445 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 28POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-4901445

• Description：CONN HEADER SMD 28POS 1.27MM
• Series：Archer M50
• Mfr：Harwin Inc.
• Package：Tube
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.050" (1.27mm)
• Number of Positions：28
• Number of Rows：2
• Row Spacing - Mating：0.050" (1.27mm)
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：-
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.224" (5.69mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Gold
• Contact Material：Copper Alloy
• Insulation Material：Liquid Crystal Polymer (LCP)
• Features：-
• Operating Temperature：-40°C ~ 105°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：1A per Contact
• Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-4901445
