M50-4903545

Headers, Male Pins Overview

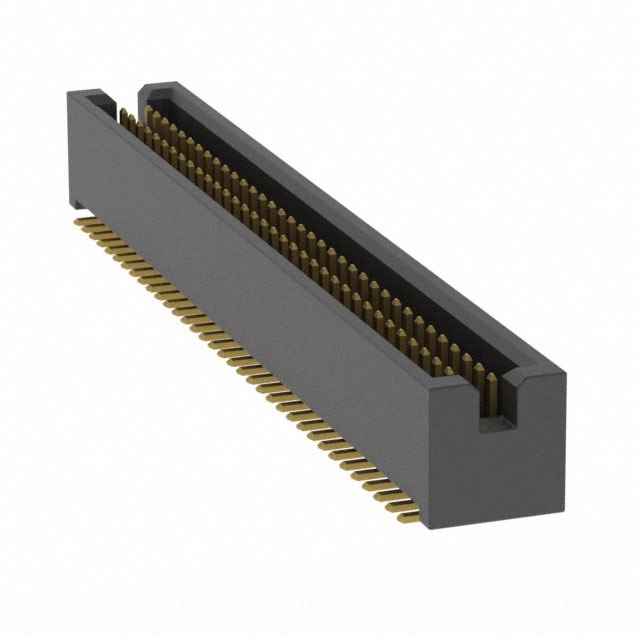

The M50-4903545 is a surface-mount header from the Harwin Archer M50 series, featuring a 1.27 mm pitch and 70 positions in a dual-in-line configuration. It utilizes gold-plated phosphor bronze contacts housed in black liquid crystal polymer (LCP) insulation. The component supports a maximum current of 1 A and operates within a temperature range of -40°C to +105°C. Designed for SMD/SMT installation with straight pin orientation, it offers high insulation resistance and UL 94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Dual-row shrouded design ensures precise alignment during board-to-board or wire-to-board connections.
• Gold-plated contacts provide reliable signal transmission and corrosion resistance.
• Liquid crystal polymer housing delivers high thermal stability and mechanical strength.

Headers, Male Pins Applications

• High-density electronic assemblies requiring compact interconnects
• Board-to-board communication links in consumer electronics
• Wire-to-board connections in industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific contact count and housing material against the official datasheet before ordering. Confirm that the surface-mount footprint matches your PCB layout requirements. Ensure compatibility with standard reflow soldering profiles to maintain connection integrity. Check for any RoHS compliance documentation if required by your manufacturing standards.

Headers, Male Pins Selection Notes

Select this component when a high-pin-count, low-profile connector is needed for space-constrained designs. The 1.27 mm pitch allows for dense routing while maintaining adequate spacing. Consider the LCP material properties for applications involving elevated temperatures or chemical exposure. Verify that the 1 A current rating meets the electrical load requirements of the target circuit.

Headers, Male Pins Part Context

This part belongs to the Archer M50 series, known for its reliability in demanding environments. The series offers various configurations including through-hole and IDC options. The M50-4903545 specifically addresses the need for high-density surface-mount solutions with robust mechanical locking features provided by the shrouded design.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Alternative connectors may require redesign of the PCB footprint due to variations in pitch, row configuration, or housing dimensions. Consult Harwin technical support for compatible alternatives if this part is unavailable.
