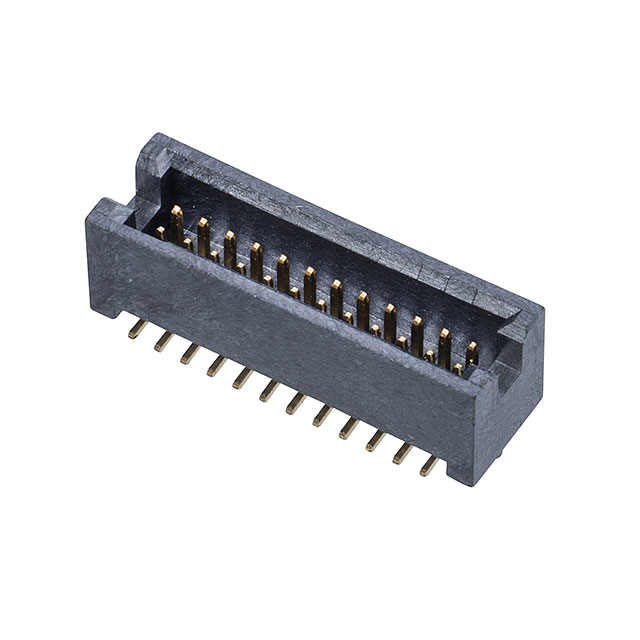

M50-4911245

$3.62

Description：CONN HEADER SMD 24POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:12d91803eeae Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4911245 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 24POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-4911245

Description：CONN HEADER SMD 24POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：24
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.224" (5.69mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Board Guide
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-4911245

M50-4911245

Headers, Male Pins Overview

The Harwin M50-4911245 is a surface mount header from the Archer M50 series, featuring 24 positions in a dual in-line configuration. It utilizes a 1.27 mm pitch with two rows of male pins. The connector employs gold-plated phosphor bronze contacts and an LCP housing rated UL 94 V-0. Designed for board-to-board applications, it supports a current rating of 1 A and operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

Shrouded design with integrated mounting pegs for precise alignment during assembly
Gold-plated contacts ensure reliable signal transmission and corrosion resistance
High-temperature LCP housing provides structural stability and flame retardancy

Headers, Male Pins Applications

Board-to-board interconnections in compact electronic assemblies
Surface mount integration in industrial control modules
Signal routing in high-density circuit boards requiring precise alignment

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 24-position dual in-line configuration. Confirm that the surface mount package type aligns with the PCB footprint design. Ensure compatibility with the specified operating temperature range and current ratings for the intended application environment before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a shrouded, surface-mount header with mounting pegs is required for precise alignment. The 1.27 mm pitch suits high-density layouts. Verify that the LCP material and gold plating meet environmental and electrical requirements. Ensure the mating socket height accommodates the mechanical stack-up constraints of the assembly.

Headers, Male Pins Part Context

This component belongs to the Harwin Archer M50 series, which offers various mating heights and configurations. The series is designed for board-to-board and wire-to-board connections. The M50-4911245 specifically addresses needs for shrouded, aligned surface mount headers with robust mechanical features.
