Product Detailed Parameters
- Description：MODULE POWER 50A 600V SCR BRIDGE
- Series：M50
- Mfr：Sensata-Crydom
- Package：Bulk,Box
- Structure：Bridge, Single Phase - All SCRs
- Number of SCRs, Diodes：4 SCRs
- Voltage - Off State：600 V
- Current - On State (It (AV)) (Max)：-
- Current - On State (It (RMS)) (Max)：-
- Current - Non Rep. Surge 50, 60Hz (Itsm)：600A @ 60Hz
- Operating Temperature：-40°C ~ 125°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Voltage - Gate Trigger (Vgt) (Max)：3 V
- Current - Gate Trigger (Igt) (Max)：150 mA
- Current - Hold (Ih) (Max)：-
- Grade：-
- Qualification：-
Download product information
Overview

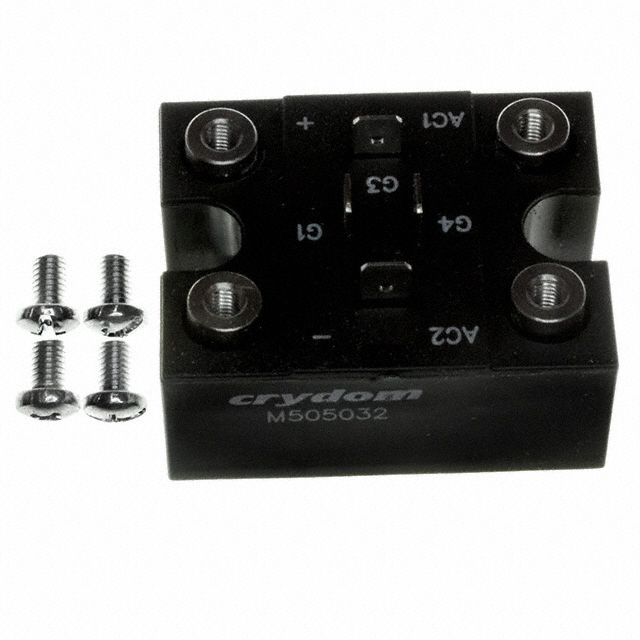

The M505032 is a single-phase SCR bridge rectifier module from the Crydom M50 series, manufactured by Sensata-Crydom. It features a silicon construction with a peak reverse voltage of 800 V and an average forward current rating of 50 A. The device supports a non-repetitive surge current of 600 A at 60 Hz and operates within a junction temperature range of -40°C to +125°C. Designed for chassis mounting, it utilizes a standard module package configuration.
Feature Summary
- Integrates highly efficient thermal management architecture to ensure high surge capability and extended operational lifetime.
- Provides reliable performance through robust silicon-based thyristor construction optimized for industrial power switching applications.
Applications
- Industrial motor control systems
- Power supply circuits requiring single-phase rectification
- General purpose AC/DC conversion modules
Procurement Notes
Verify the specific datasheet version for the M505032 to confirm exact thermal resistance values and pinout configurations prior to integration. Ensure that the mounting surface preparation meets the manufacturer's requirements for optimal heat dissipation and mechanical stability during operation.
Selection Notes
Select the M505032 when a single-phase SCR bridge with 800 V blocking voltage and 50 A continuous current capacity is required. This module is suitable for chassis-mounted installations where high surge tolerance and efficient thermal handling are critical design parameters for power electronics.
Part Context
The M505032 belongs to the Crydom M50 series of discrete semiconductor modules. This family is characterized by its focus on high reliability and thermal efficiency in power switching applications. The series offers various voltage and current ratings to accommodate diverse industrial power conversion needs.
Replacement Considerations
Publicly confirmed substitute part numbers for the M505032 are not available in the provided documentation. Verify compatibility with alternative SCR bridge modules based on matching electrical ratings and mechanical mounting specifications before substitution.
