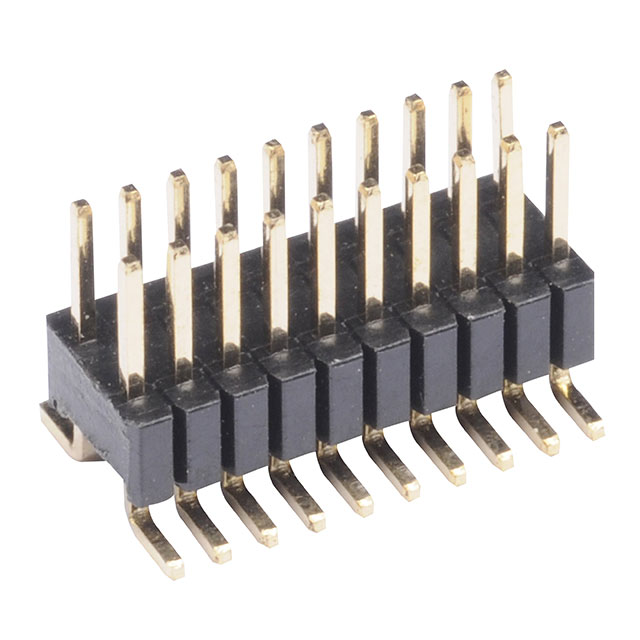

M52-040000S0545

$1.41

Description：CONN HEADER SMD 10POS 1.27MM
Series：Archer M52
Mfr：Harwin Inc.
Package：Bulk

SKU:761febacb919 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M52-040000S0545 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 10POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M52-040000S0545

Description：CONN HEADER SMD 10POS 1.27MM
Series：Archer M52
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：10
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.157" (4.00mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.098" (2.50mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Male Pins datasheet and documents for M52-040000S0545

M52-040000S0545

Headers, Male Pins Overview

The M52-040000S0545 is a surface mount pin header from the Harwin Archer M52 series. It features a single row of 10 male pins with a 1.27 mm pitch. The connector utilizes gold-plated brass contacts and a black nylon housing. Rated for 1 A current and 500 V voltage, it operates within a temperature range of -40°C to +105°C. The unit weighs 673 mg and employs solder tail termination.

Headers, Male Pins Feature Summary

Straight vertical orientation for board-to-board connectivity
Gold-plated brass contacts ensure reliable signal transmission
Surface mount technology facilitates automated assembly
Unshrouded design allows for flexible mating options

Headers, Male Pins Applications

High-density electronic assemblies
Industrial control systems
Telecommunications equipment
Consumer electronics interconnects

Headers, Male Pins Procurement Notes

Verify the specific pin count and row configuration against project requirements before ordering. Confirm that the surface mount footprint matches the PCB layout dimensions. Ensure compatibility with standard reflow soldering profiles. Check for any RoHS compliance documentation if required by regional regulations. Validate the operating temperature range against environmental conditions.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-reliability interconnect is needed for dense circuit boards. The 1.27 mm pitch supports compact designs while maintaining electrical integrity. Consider the unshrouded nature for applications requiring custom shrouding or direct mating. Evaluate the thermal stability for environments exceeding standard commercial ranges.

Headers, Male Pins Part Context

This part belongs to the Archer M52 series, characterized by 0.46 mm square pins. The series offers various configurations including single and double rows. It is designed for robust performance in demanding electronic applications. The M52 line emphasizes durability and precise alignment during mating cycles.
