M52-040023V0545

Headers, Male Pins Overview

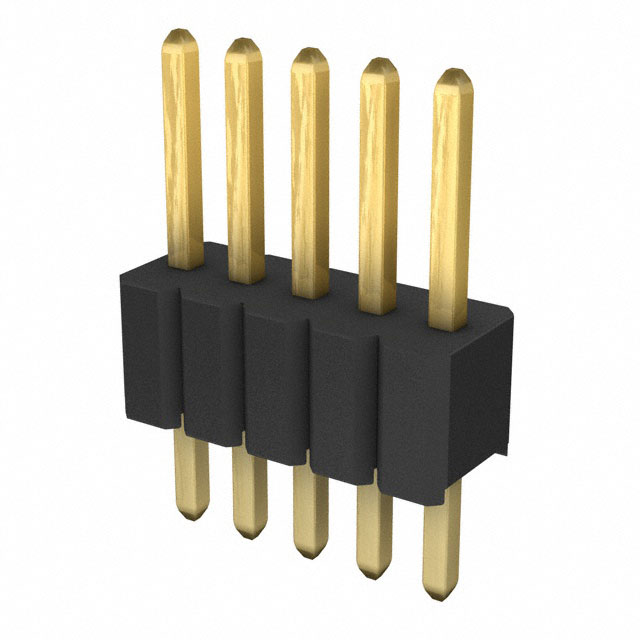

The Harwin M52-040023V0545 is a single-row, vertical pin header from the Archer M52 series. It features a 1.27 mm pitch and five positions for board-to-board connectivity. The connector utilizes brass contacts with gold plating and nylon housing. Designed for through-hole installation, it includes a 2.3 mm PC tail length. The unit supports a current rating of 1 A and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Vertical single-row configuration for direct board stacking
• Gold-plated brass contacts ensure reliable signal transmission
• Nylon housing provides structural integrity and insulation

Headers, Male Pins Applications

• High-density electronic assemblies requiring compact interconnects
• Industrial control systems utilizing board-to-board connections
• Consumer electronics manufacturing processes

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm availability status. Check for potential obsolescence or lifecycle changes directly from the manufacturer. Ensure compatibility with mating connectors in the target design. Confirm regulatory compliance requirements such as RoHS standards before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a vertical, single-row interconnect with a 1.27 mm pitch is required. Consider the 1 A current rating and 105°C maximum operating temperature for environmental suitability. Verify that the 2.3 mm tail length fits the PCB thickness constraints. Ensure the mating interface matches the male pin specifications of the Archer M52 series.

Headers, Male Pins Part Context

This component belongs to the Archer M52 series by Harwin Inc., designed for high-reliability applications. The series offers various configurations including different row counts and pitches. This specific model represents a standard vertical pin header variant suitable for general-purpose electronic interconnections where space efficiency is critical.

Headers, Male Pins Replacement Considerations

Consult official Harwin documentation for verified substitute part numbers. Cross-reference technical specifications including pitch, contact count, and mounting style. Ensure any alternative component meets identical electrical and mechanical requirements for seamless integration.
