M52-040023W0545

Headers, Male Pins Overview

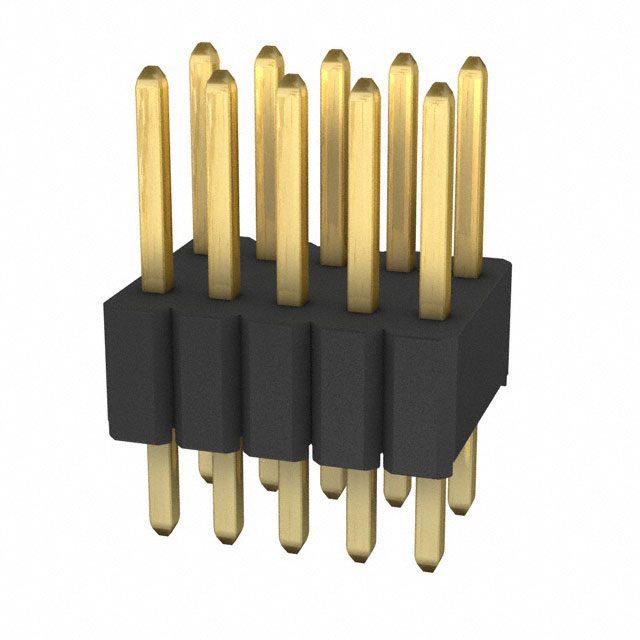

The Harwin M52-040023W0545 is a board-to-board header from the Archer M52 series. It features a 1.27mm pitch with 10 contacts arranged in a double row configuration. The connector utilizes brass contacts with gold plating and is designed for through-hole mounting. It has a current rating of 1.0A and operates within a temperature range of -40°C to 105°C. The insulation material is polyamide (PA6T).

Headers, Male Pins Feature Summary

• Vertical male pin header design for direct PCB insertion.
• Gold-plated brass contacts ensure reliable electrical conductivity.
• Polyamide insulation provides thermal stability up to 105°C.

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronic assemblies.
• Industrial control systems requiring robust vertical headers.
• Consumer electronics utilizing space-constrained PCB layouts.

Headers, Male Pins Procurement Notes

Verify the part number M52-040023W0545 against official Harwin documentation to confirm specifications. Ensure compatibility with mating sockets regarding pitch and row spacing. Check for environmental certifications if required for specific industrial applications. Confirm that the through-hole mounting style matches the target PCB design requirements.

Headers, Male Pins Selection Notes

Select this component when a 1.27mm pitch vertical header is required. The double-row configuration supports higher density connections compared to single-row alternatives. Consider the 1.0A current rating for power distribution needs. Verify that the operating temperature range meets the environmental conditions of the intended application.

Headers, Male Pins Part Context

This component belongs to the Harwin Archer M52 series, which offers 1.27mm pitch connectors. The series includes various configurations for board-to-board and wire-to-board applications. The M52 series is known for its square pin design and reliability in demanding environments.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult Harwin technical support for compatible alternatives within the Archer M52 series or other Harwin product lines.
