M52-5051045

$1.95

Description：CONN RCPT 10POS 0.05 GOLD SMD
Series：-
Mfr：Harwin Inc.
Package：Tube

SKU:6be49f224060 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M52-5051045 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 10POS 0.05 GOLD SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M52-5051045

Description：CONN RCPT 10POS 0.05 GOLD SMD
Series：-
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board
Number of Positions：10
Number of Positions Loaded：All
Pitch - Mating：0.050" (1.27mm)
Number of Rows：1
Row Spacing - Mating：-
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Insulation Color：Black
Insulation Height：0.224" (5.69mm)
Contact Length - Post：-
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：-
Mated Stacking Heights：8.5mm, 9.77mm
Ingress Protection：-
Features：-
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for M52-5051045

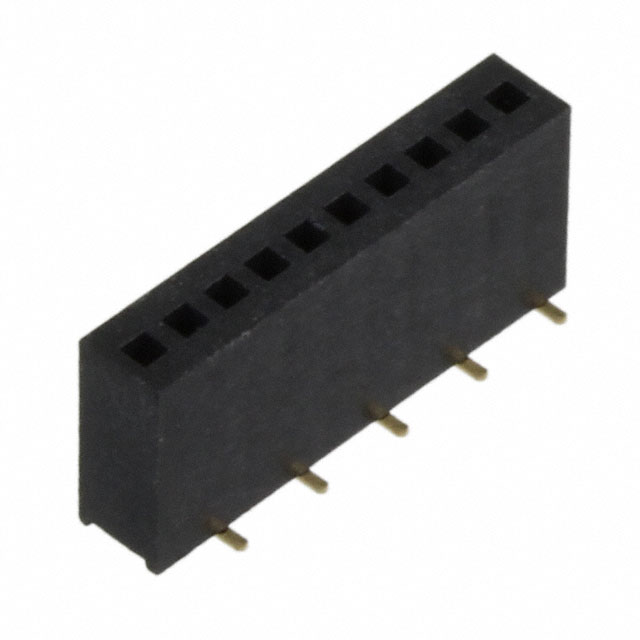

M52-5051045

Headers, Receptacles, Female Sockets Overview

The M52-5051045 is a 10-position vertical surface mount socket assembly from the Harwin Archer M52 series. It features a 1.27mm (0.05 inch) pitch and single-row configuration with gold-plated phosphor bronze contacts. Designed for board-to-board interconnection, it utilizes through-hole solder termination for secure PCB attachment. The unit operates within a temperature range of -40°C to +105°C and employs black polyamide insulation rated UL94 V-0.

Headers, Receptacles, Female Sockets Feature Summary

Vertical surface mount architecture optimized for space-constrained board-to-board applications
Gold-plated phosphor bronze contacts ensure reliable signal transmission and corrosion resistance
High-temperature polyamide insulation provides structural stability and UL94 V-0 flammability rating

Headers, Receptacles, Female Sockets Applications

Telecommunications equipment
Medical devices
General industrial electronics

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix code against official Harwin documentation to confirm the exact contact plating thickness and material composition. Ensure the selected variant matches the required vertical height and mounting orientation for the target PCB layout. Cross-reference the RoHS compliance status with current regulatory requirements before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile vertical connection is required for high-density layouts. The 1.27mm pitch allows for compact circuit designs while maintaining robust mechanical locking. Consider the surface mount profile for automated assembly processes and verify clearance heights against adjacent components on the mating board.

Headers, Receptacles, Female Sockets Part Context

This receptacle belongs to the Archer M52 family, known for its push-pull locking mechanism and high reliability in harsh environments. The series supports various pin counts and mounting styles, offering engineers flexible interconnect solutions for demanding electronic applications requiring stable performance over extended operational lifespans.
